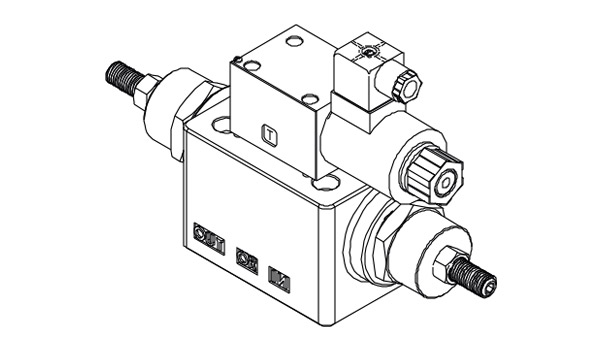

Solenoid Operated Flow Control Valves SF-03-06G
- Home
- Products
- Traditional Valves
- Non-Modular Type
- Solenoid
- Solenoid Operated Flow Control Valves
- Specifications
- How to Order
| Model Number | Maximum Pressure (bar) | Connecting PT | Maximum Flow (lpm) | Weight (kg) | Solenoid Valves |
|---|---|---|---|---|---|
| SF -03G | 250 (3625 psi) | 3/4'' | 50 (13.20 gpm) | 4.2 (9.259 Ibs) | WE-2B2L-02G |
| SDF-03G | WE-282-02G | ||||
| THF-03G | 4.2 (9.259 Ibs) | ||||
| SFD-03G | 3 (6.614 lbs) | WE-2B2-02G | |||
| SKF-03G | 4.2 (9.259 Ibs) | WE-2B2L-02G | |||
| SD -03G | 4.6 (10.141 Ibs) | WE-3C4-02G | |||
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||||
| Operating Temperature (°C) | -15~70 (-5~158 °F) | ||||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||||
| Surface Treatment | Zinc Phosphate Compound | ||||
- All screws with metric measure, if require inch measure, please contact us.
