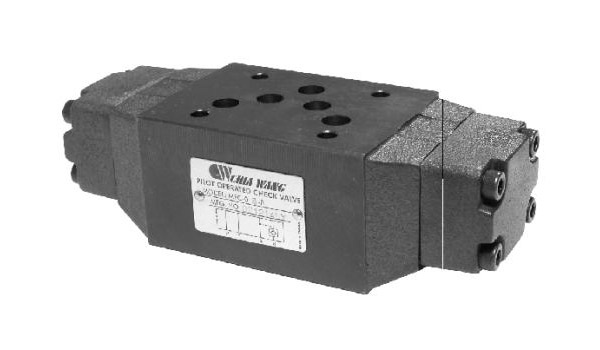

MPC-03

Features

  • MPC series modular pilot operated check vaives can be used for the "A" port or the "B" port respectively, or the "A" port and the "B" port jointly.
  • Casting iron valve bodies are provide strength and durability for longer life.
  • Internal hardened steel components also provide longer life.
  • Inquiry
    PDF
  • Specifications
  • How to Order
Model Number Maximum Pressure Connetcing PT Maximum Flow Weight
MPC-03-A, B 250 (3625 PSI) 3/8" 80 (21.13 gpm) 2.6 (5.7 Ibs)
MPC-03-W 2.8 (6.2 Ibs)
MPC-03-AD, BD 315 (4500 psi) 3/8" 120 (31.70 gpm) 3.6 (7.9 lbs)
MPC-03-WD
Fluid Type ISO VG 32, 46, 68
Viscosity 10~400 (59~1854 SSU)
Operating Temperature -15~70 (-5~158oF)
Contamination Level ISO4406. 21/19/16 NAS1638,10
Surface Treatment Zinc Phosphate Compound
  • All screws with metric measure, if require inch measure, please contact us.
