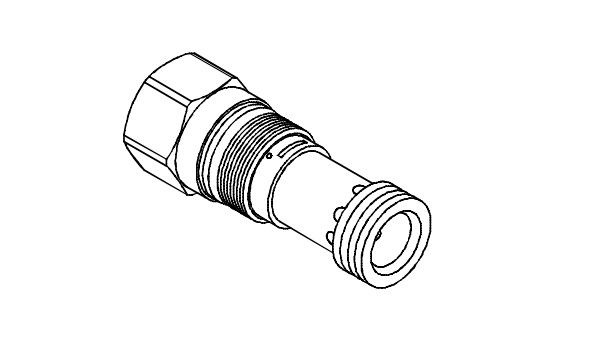

Pressure Control Valves VRCP-02

Picture Index
Model Index
Features

  • The-8 control option allows a pilot control valve to be ncorporated directly into the end of the modulating element via the T-8A cavity.
  • These pilot control cartridges are sold separately and include electro-proportional.
  • Hydraulic pilot operation

Inquiry
PDF
  • Specifications

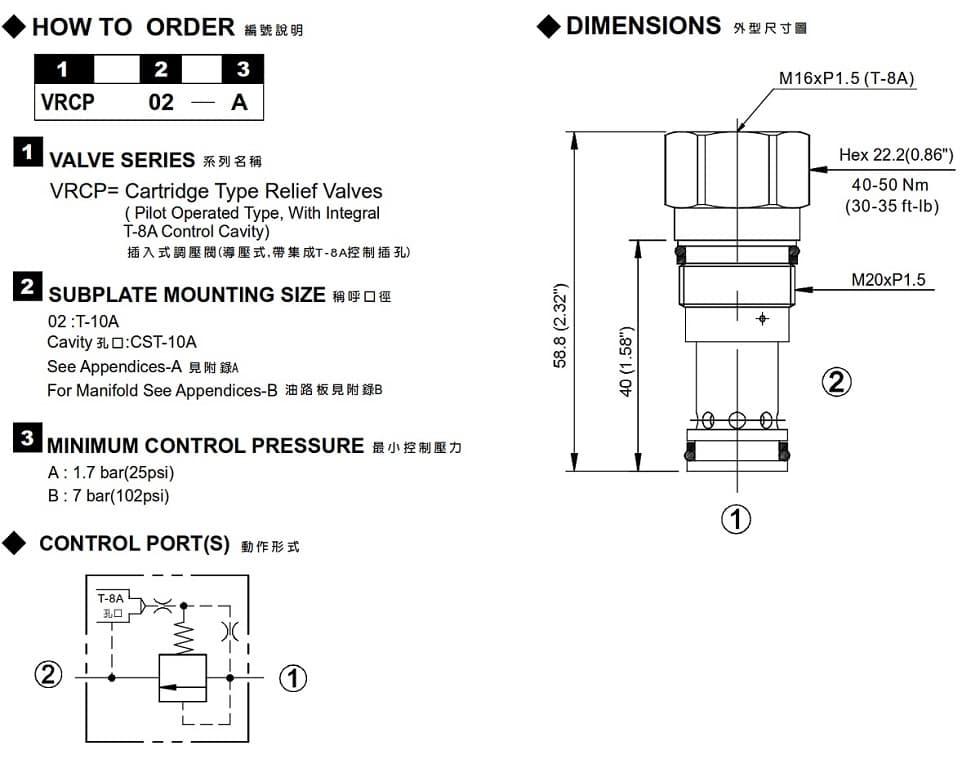

  • How to Order
Model Number Maximum Pressure Minlmum Control Pressure Flow Weight
VRCP-02 350 (5076 psi) 1.7 (25 psi) 100 (26.42 gpm) 0.12 (0.26 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity 10~400 (59~1854 SSU)
Operating Temperature -30~100 (-22~212oF)
Contamination Level ISO4406. 21/19/16 NAS1638,10
