VCBE-02, VCBE-03, VCBE-06, VCBE-10

Features

  • When the motor is in a stationary, unpowered mode, this assembly will prevent excessive drift ib either direction of rotation. It will also prevent motor over speed when exposed to an overrunning load, and will control motor deceleration to a stop.
  • A shuttle within the assembly provides a pilot to release a parking or holding brake as Either motor port is pressurized. Typical applications are swing drives, winch drives, and Vehicle propulsion circuits. If the shuttle is not required the "barke" port may be plugged.

Inquiry
PDF
  • Specifications

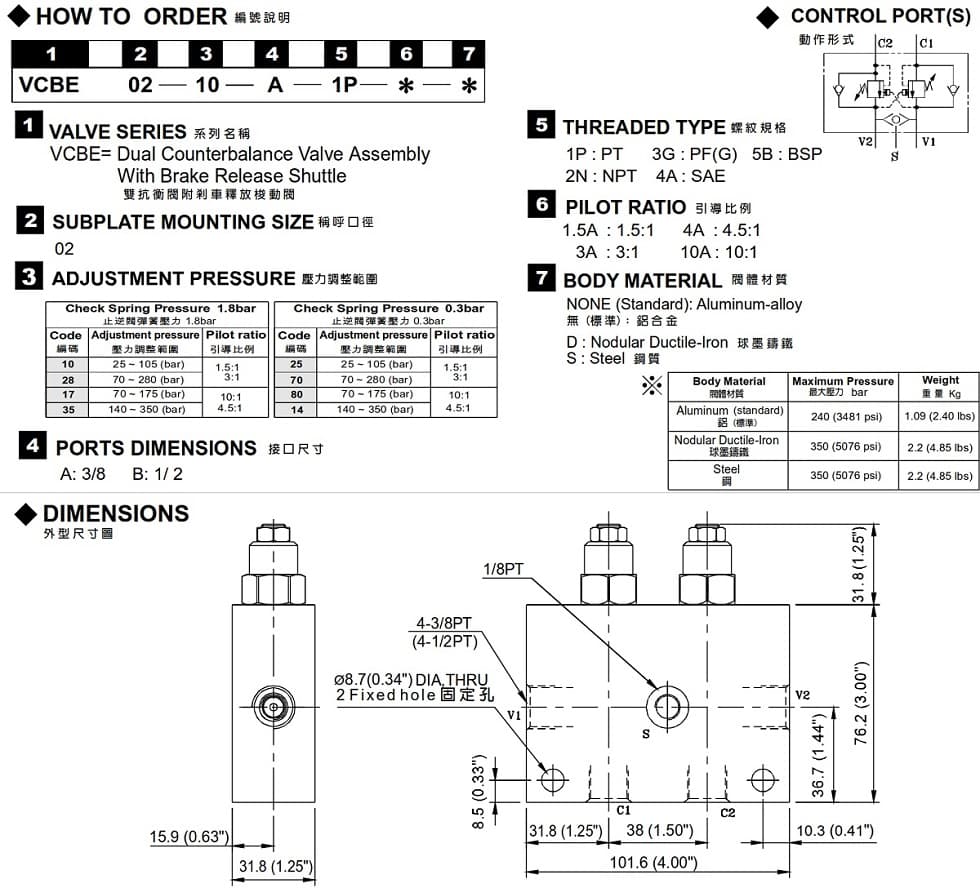

  • How to Order
Model Number Maximum Pressure Pliot Ratlo Adjustment Pressure Maximum Flow Weight
VCBE-02 350 (5076 psi) 1:5:1 / 3:1 / 4:5:1 / 10:1 *~350 60 (15.85 gpm) 2.2 (4.85 lbs)
VCBE-03 120 (31.70 gpm) 3 (6.61 lbs)
VCBE-06 240 (63.40 gpm) 7.3 (16.09 lbs)
VCBE-10 480 (126.80 gpm) 20 (44.09 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity 10~400 (59~1854 SSU)
Operating Temperature -15~70 (-5~158oF)
Contamination Level ISO4406. 21/19/16 NAS1638,10
