Flow Control Valves VIFC-16
- Home
- Products
- Cartridge Valves
- Flow Control
- Flow Control Valves
Features

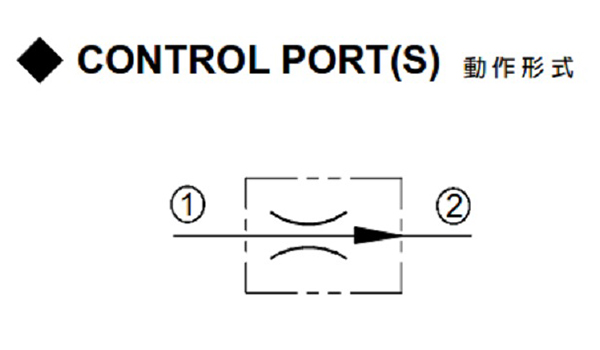

- Cartridge-style, fixed orifice ,pressure-compensated, hydraulic flow regulating valve. The maintains a constant flow rate out of 2 regardless of load pressure changes in the circuit downstream of 2. The valve begins to respond to load changes when the flow through the valve creates a pressure differential across the control orifice greater than 6.5 bar（95 psi）. Reverse flow（2 to 1）returns through the control orifice and is non-compensated.
- Specifications
- How to Order
| Model Number | Operating Pressure (bar) | Flow Settings (lpm) | Weight (kg) |
|---|---|---|---|
| VIFC-16 | 240 (3481 psi) | 0.4 ~ 113 (0.11 ~ 29.85 gpm) | 0.42 (0.93 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||
