Flow Control Valves VIFC-140

Features

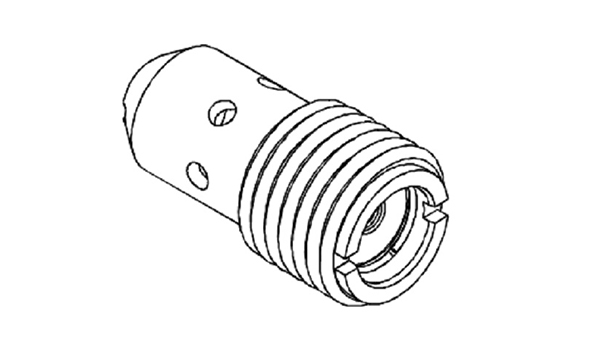

  • A screw-in insert type, 2-way pressure compensated flow control valve.

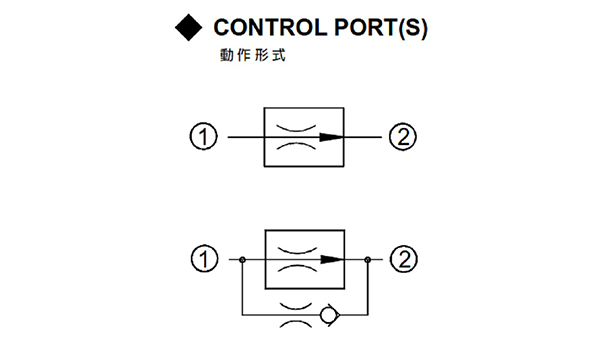

  • The flow rate of this valve in the 1 to 2 flow path is largely independent of the system pressure and is determined by the dimension of a calibrated orifice.
  • The valve cannot be adjusted for variable flow output.

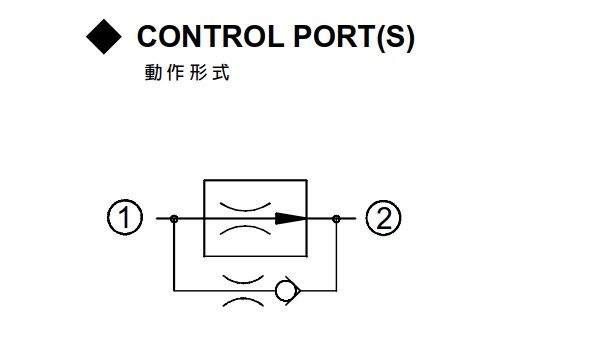

  • Free flow in the 2 to 1 path is allowed and not pressure compensated.

Inquiry
PDF
  • Specifications

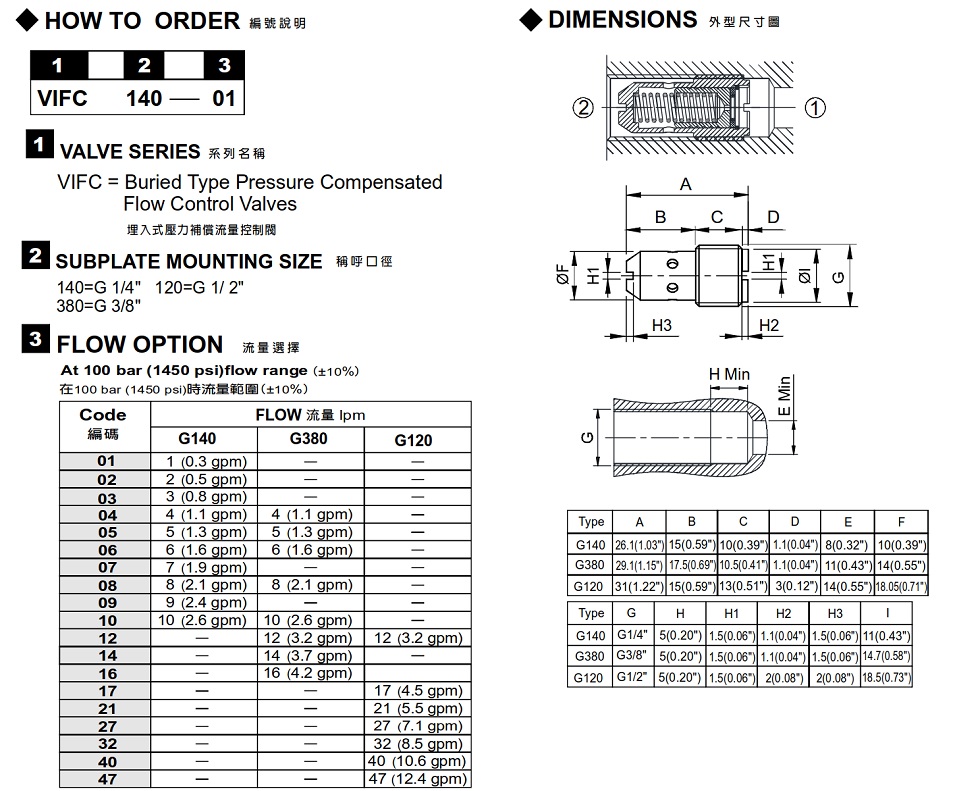

  • How to Order
Model Number Maximum Pressure Flow Weight
VIFC-140 210 (3046 psi) Non-adjustable 不可調整 (See below) 見下方 0.02 (0.04 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity 10~400 (59~1854 SSU)
Operating Temperature -30~100 (-22~212oF)
Contamination Level ISO4406. 21/19/16 NAS1638,10
