Unloading Valves SQ-01G
- Home
- Products
- Stack Valves
- Accessories for stack valves
- Unloading Valves
- Specifications

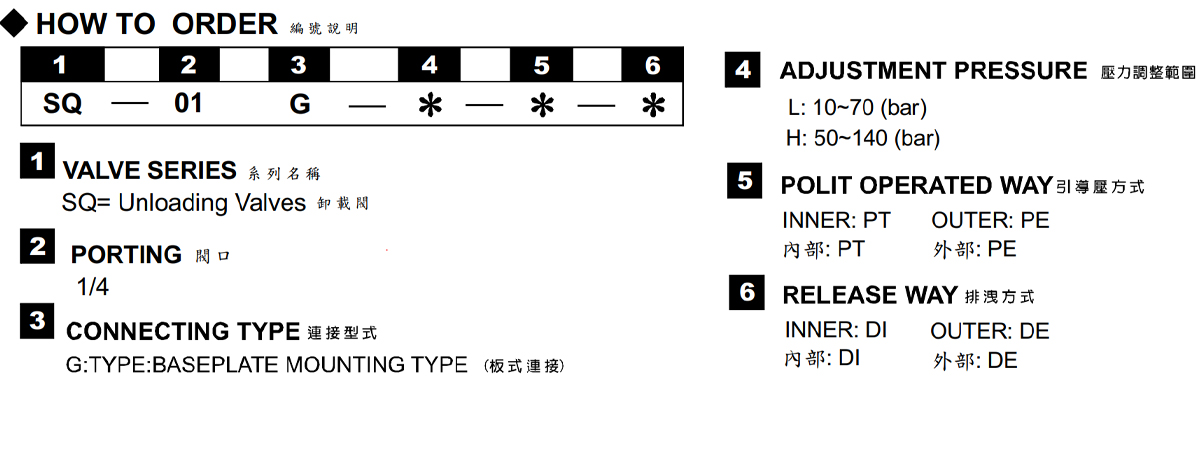

- How to Order
| Model Number | Operating Pressure (bar) | Flow (lpm) | Adjustment Pressure (bar) | Weight (kg) | |
|---|---|---|---|---|---|
| SQ-01G | 250 (3625 psi) | 35 (8.81gpm) | L: 10~70 (bar) H: 50~140 (bar) |
1.4 (3.09 lps) | |
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||||
| Operating Temperature (°C) | -15~70 (-5~158 °F) | ||||
| Contamination Level | β₁₀ ≧ 75, Under NAS Class 12, 25μ | ||||
