Features
- The system design engineers a low cost, high working pressure, simple structure, easily-maintain and installation.
- High flow capacity, power saving and small size provide economic space.
- Maximum working pressure 210 kfg/ cm2 (3000 psi).
- Low noise level, endurance and heat generated is much less.
- Variable displacement pump and gear pump one are assembled with the same shaft directly.
- Specifications

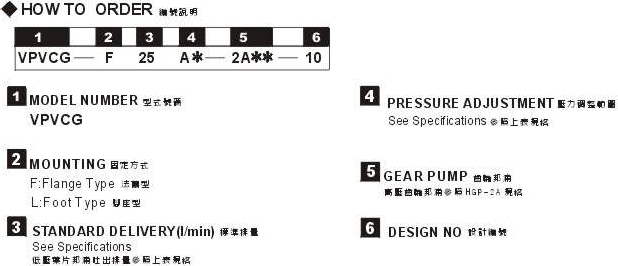

- How to Order
| Model | Variable pump delivery | Adjusting pressure range | Gear pump displacement | MAX. pressure |
Speed | Weight | |
|---|---|---|---|---|---|---|---|
| Max. | Min. | kg | |||||
| VPVCG-F25-※-PA-10 | 25 | A1:8~18 kgf/cm2 (114~257 psi) A2:15~35 kgf/cm2 (214~500 psi) A3:30~55 kgf/cm2 (428~785 psi) A4:50~70 kgf/cm2 (714~1000 psi) |
HGP-2A 2-12 | 210 (3000) | 1800 | 1000 | 9.4 (20.6) |
| VPVCG-F30-※-PA-10 | 30 | 1800 | |||||
| VPVCG-F40-※-PA-10 | 40 | 1800 | |||||
- Design and specifications are subject to change without prior notice.
