Double Variable Vane Pumps VPCC-F
- Home
- Products
- Hydraulic Accessories
- Pumps
- Double Variable Vane Pumps
Features
- Double variable displacement vane pumps built into one single body, with a common driving shaft enabling driving two independent pumps to produce two branches of oil flow system which avoid interfering with each other.
- Requires only one single-shaft, and uses a single electric motor.
- Space saving for easier installation and maintenance.
- Closed circuit to achieve lower level.
- Specifications

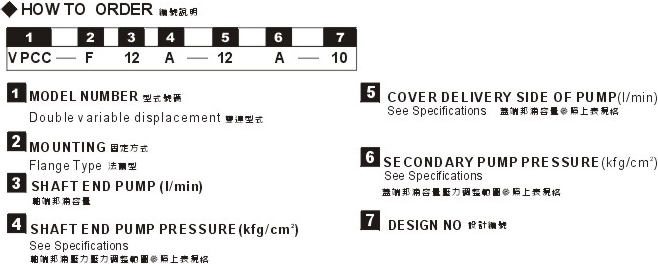

- How to Order
| Model | MAX. pressure |
Displacement | Adjusting pressure range | Speed | Weight | |||
|---|---|---|---|---|---|---|---|---|
| Shaftside pump | Coverside pump | Shaftside pump | Coverside pump | Max. | Min. | kg | ||
| VPCC-F12-※-12-※-10 | (1000) 70 |
12 | 12 | A:8~18 kgf/cm2 (114~257 psi) B:15~35 kgf/cm2 (214~500 psi) C:30~55 kgf/cm2 (428~785 psi) D:50~70 kgf/cm2 (714~1000 psi) |
1800 | 800 | 9.5 (20.9) | |
| VPCC-F15-※-15-※-10 | 15 | 15 | 1800 | 800 | ||||
| VPCC-F20-※-20-※-10 | 20 | 20 | 1800 | 800 | ||||
| VPCC-F25-※-25-※-10 | 70 (1000) |
25 | 25 | 1800 | 800 | 16 (35.2) | ||
| VPCC-F30-※-30-※-10 | 30 | 30 | 1800 | 800 | ||||
| VPCC-F40-※-40-※-10 | 40 | 40 | 1800 | 800 | ||||
- Design and specifications are subject to change without prior notice.
