Directional Valves SH-02G
- Home
- Products
- Traditional Valves
- Non-Modular Type
- Other Non-Modular Type
- Directional Valves
- Specifications

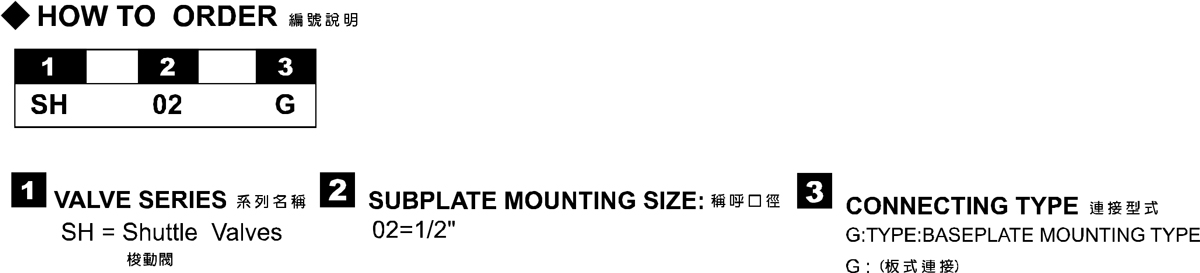

- How to Order
| Model Number | Maximum Pressure (bar) | Connetcing PT | Maximum Flow (lpm) | Weight (kg) |
|---|---|---|---|---|
| SH-02G | 250 (3626 psi) | 1/4" | 20 (5.28 gpm) | 1.08 (2.38 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | |||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | |||
| Operating Temperature (°C) | -30~100 (-22~212°F) | |||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | |||
- All screws with metric measure, if require inch measure, please contact us.
