Logic Valves LCV
- Specifications

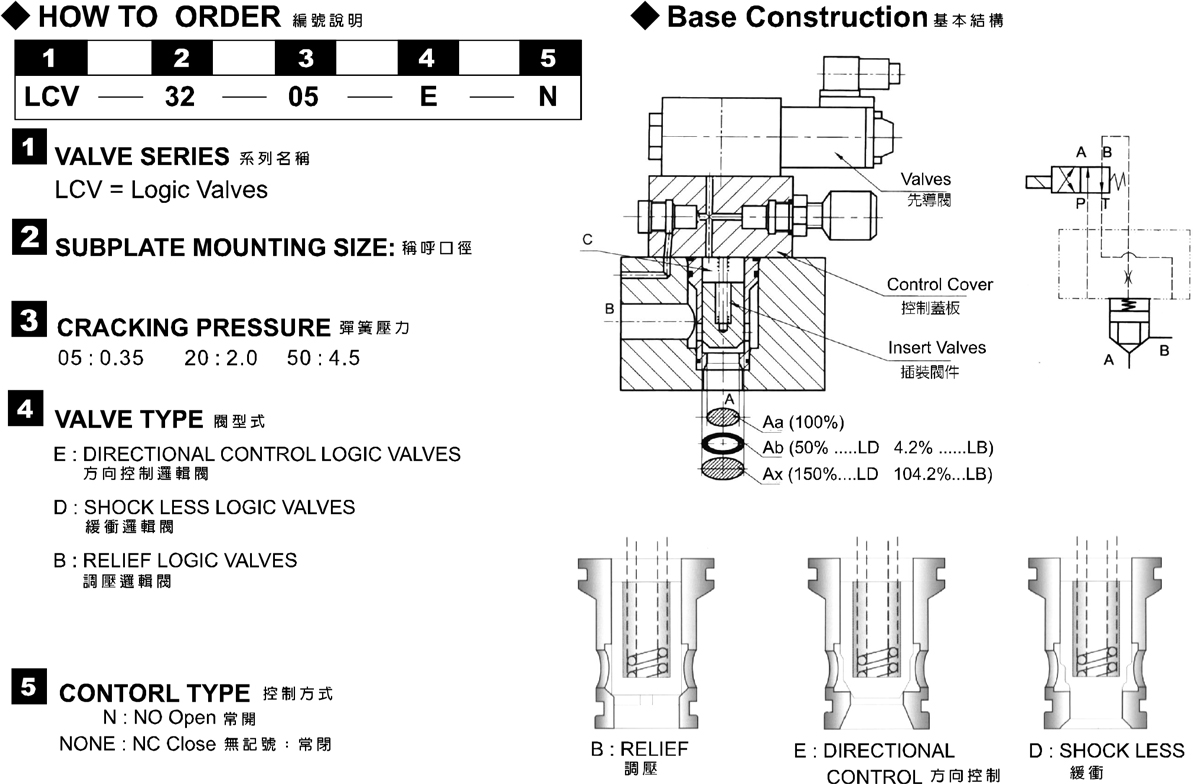

- How to Order
| Model Number | Maximum Pressure | Connetcing PT | Maximum Flow | Weight | |
|---|---|---|---|---|---|
| LCV-16-※-※ | 315 (4500 psi) | 130 (34.34 gpm) | 05:0.5 20:2.0 50:4.5 |
E:2:1 D:2:1 B:2:1 |
|
| LCV-25-※-※ | 350 (92.46 gpm) | ||||
| LCV-32-※-※ | 500 (132.09 gpm) | ||||
| LCV-40-※-※ | 850 (224.55 gpm) | ||||
| LCV-50-※-※ | 1400 (369.85 gpm) | ||||
| LCV-63-※-※ | 2100 (554.77 gpm) | ||||
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity | 10~400 (59~1854 SSU) | ||||
| Operating Temperature | -30~100 (-22~212oF) | ||||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||||
- All screws with metric measure, if require inch measure, please contact us.
