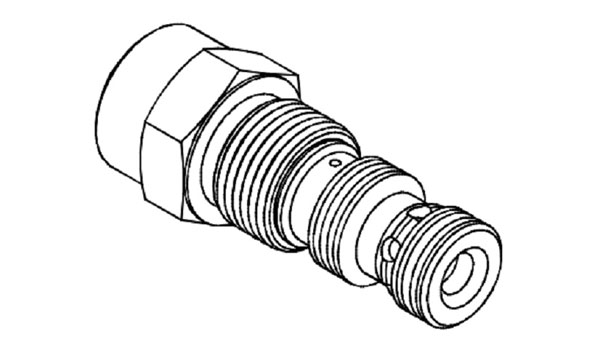

Directional Valves VLC-12
- Home
- Products
- Cartridge Valves
- Others
- Directional Valves
Features
- A poppet-type, hydraulic directional element, with multi-function potential when used with other directional, pressure, or flow control devices.
- Poppet valve which will block 1 to 2 or 2 to 1 until pressure at 1 or 2 exceeds the cumulative pressure at 3 and bias spring. With no pressure at 3 , flow will be allowed from 1 to 2 or 2 to 1 once the bias spring force is overcome with pressure at 1 or 2 . When the element is in closed state, the ratio of areas 1 and 2 is 1:1, and the ratio of areas 1 or 2 to 3 is 1:2.
- Specifications
- How to Order
| Model Number | Operating Pressure (bar) | Ratio Of Poppet Area | Flow (lpm) | Weight (kg) |
|---|---|---|---|---|
| VLC-12 | 350 (5076 psi) | 2:1 | 110 (29.06 gpm) | 0.31 (0.68 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | |||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | |||
| Operating Temperature (°C) | -30~100 (-22~212°F) | |||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | |||
