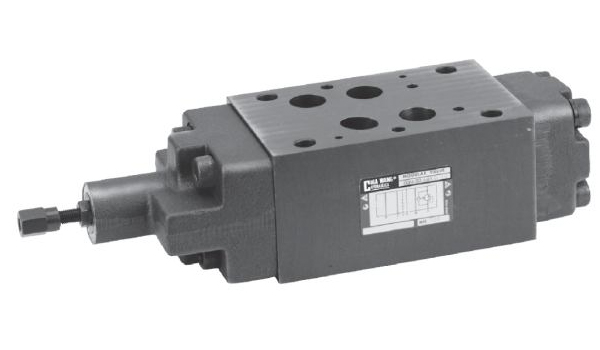

Counterbalance Modular Valves MCB-04
- Home
- Products
- Traditional Valves
- Modular Type
- Pressure Control
- Counterbalance Modular Valves
Features
- MCB series modular counter balance valves can be used to reduce pressure on the "A" port.
- Casting iron valve bodies are provided strength and durability for longer life.
- Internal hardened steel components also provide durable life.
- Two standard pressure setting options are available.
- Two pressure adjustment options are:hex. screw or knob.
- Specifications
- How to Order
Model Number | Maximum Pressure | Connetcing PT | Maximum Flow | Weight | |
---|---|---|---|---|---|
MCB-04-A | 315 (4500 psi) | 1/2" | 300 (79.25 gpm) | 7.5 (16.53 lbs) | |
Fluid Type | ISO VG 32, 46, 68 | ||||
Viscosity | 10~400 (59~1854 SSU) | ||||
Operating Temperature | -15~70 (-5~158oF) | ||||
Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||||
Surface Treatment | Zinc Phosphate Compound |
- All screws with metric measure, if require inch measure, please contact us.
