Features

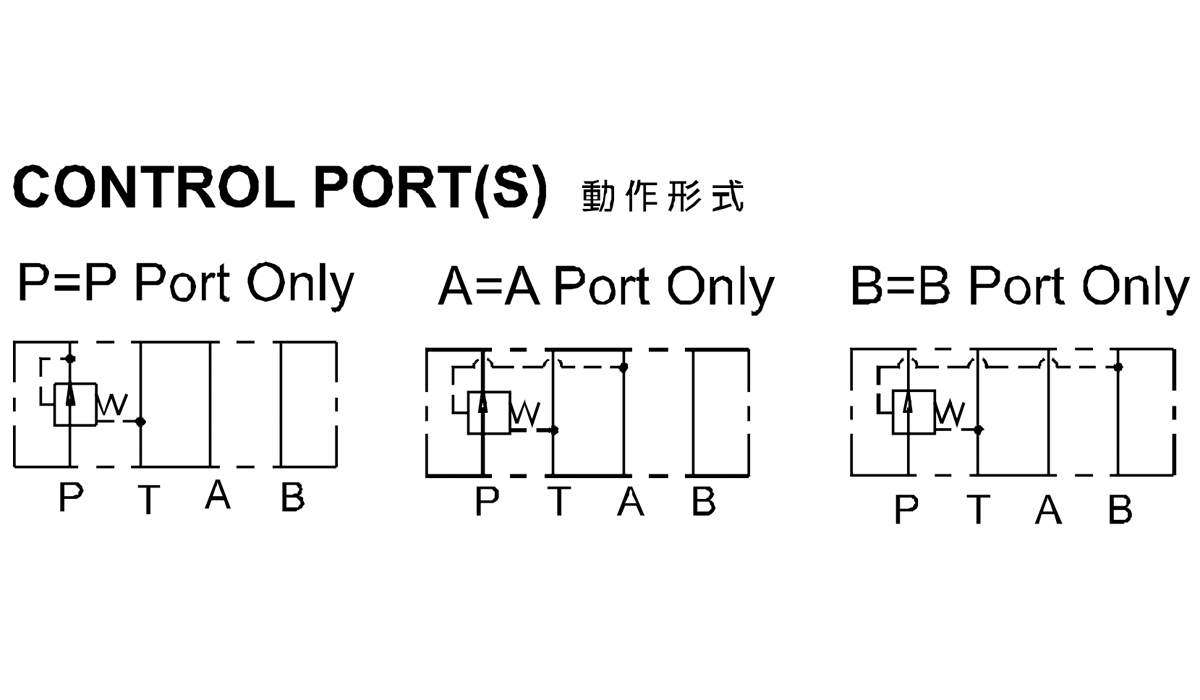

- MBRG series modular reducing valves can be used to reduce pressure on the "P" port, "A" port, or "B" port.
- Casting iron valve bodies are provided strength and durability for longer life.
- Internal hardened steel components also provide durable life.
- Three standard pressure setting options are available.
- Two pressure adjustment options are: hex. screw or knob.
- Specifications
- How to Order
| Model Number | Maximum Pressure (bar) | Connetcing PT | Maximum Flow (lpm) | Weight (kg) | |
|---|---|---|---|---|---|
| MBRG-03-P, A, B | 350 (5076 psi) | 3/8" | 120 (31.70 gpm) | 3.8 (8.4 lbs) | |
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||||
| Surface Treatment | Zinc Phosphate Compound | ||||
- All screws with metric measure, if require inch measure, please contact us.
