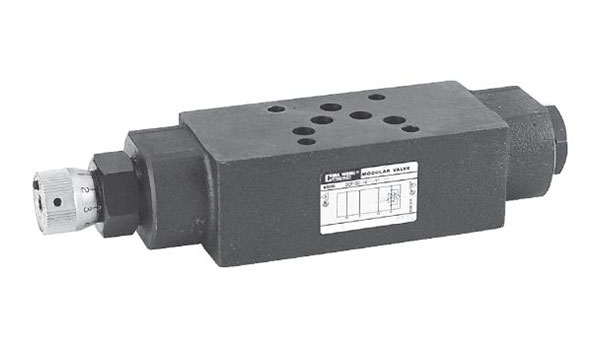

pressure temperature compensated flow control valves MOCF-03W
- Home
- Products
- Traditional Valves
- Modular Type
- Flow Control
- pressure temperature compensated flow control valves
Features
- MOCF series pressure temperature compensated flow control valves can be used for the "A" port or "B" port respectively, or the "A" port and "B" port jointly.
- Casting iron valve bodies are provided strength and durability for longer life.
- Internal hardened steel components also provide durable life.
- Specifications
- How to Order
| Model Number | Maximum Pressure | Connetcing PT | Control Flow | Weight | |
|---|---|---|---|---|---|
| MOCF-03-A,B | 250 (3625 psi) | 3/8" | 0.5~60(△P:70bar) 1~60(△P:250bar) |
4.6 (10.1 lbs) | |
| MOCF-03-W | 5 (11.0 lbs) | ||||
| MOCF-03-A1,B1 | 4.6 (10.1 lbs) | ||||
| MOCF-03-W1 | 5 (11.0 lbs) | ||||
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity | 10~400 (59~1854 SSU) | ||||
| Operating Temperature | -15~70 (-5~158oF) | ||||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||||
| Surface Treatment | Zinc Phosphate Compound | ||||
- All screws with metric measure, if require inch measure, please contact us.
