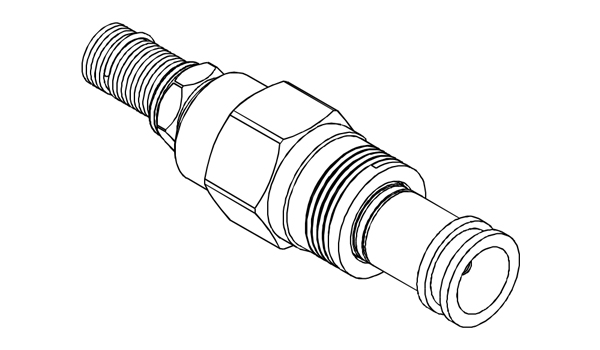

Pressure Control Valves VRC-025
- Home
- Products
- Cartridge Valves
- Pressure Control
- Pressure Control Valves
- Specifications
- How to Order
| Model Number | Operating Pressure | Maximum Flow | Weight |
|---|---|---|---|
| VRC-025 | 420 (6092 psi) | 1 (0.26 gpm) | 0.15 (0.33 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity | 10~400 (59~1854 SSU) | ||
| Operating Temperature | -30~100 (-22~212oF) | ||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||
