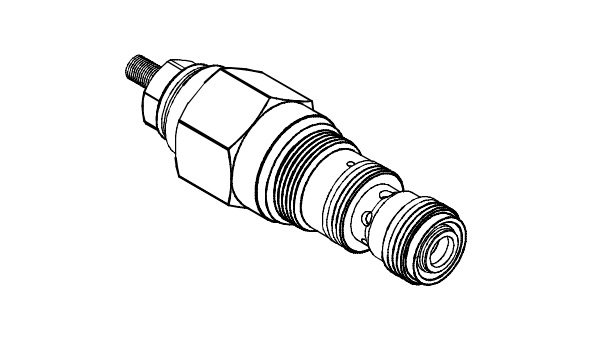

Pressure Control Valves VCQ-10U
- Home
- Products
- Cartridge Valves
- Pressure Control
- Pressure Control Valves
- Specifications
- How to Order
| Model Number | Maximum Pressure | Pllot Ratio | Adjustment Pressure | Maximum Flow | Weight |
|---|---|---|---|---|---|
| VCQ-10U | 350 (5076 psi) | 8:1 / 4:1 | *~350 | 100 (26.42 gpm) | 0.4 (0.88 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity | 10~400 (59~1854 SSU) | ||||
| Operating Temperature | -15~70 (-5~158oF) | ||||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||||
