Flow Control Valves VNC-03
- Home
- Products
- Cartridge Valves
- Flow Control
- Flow Control Valves
- Specifications

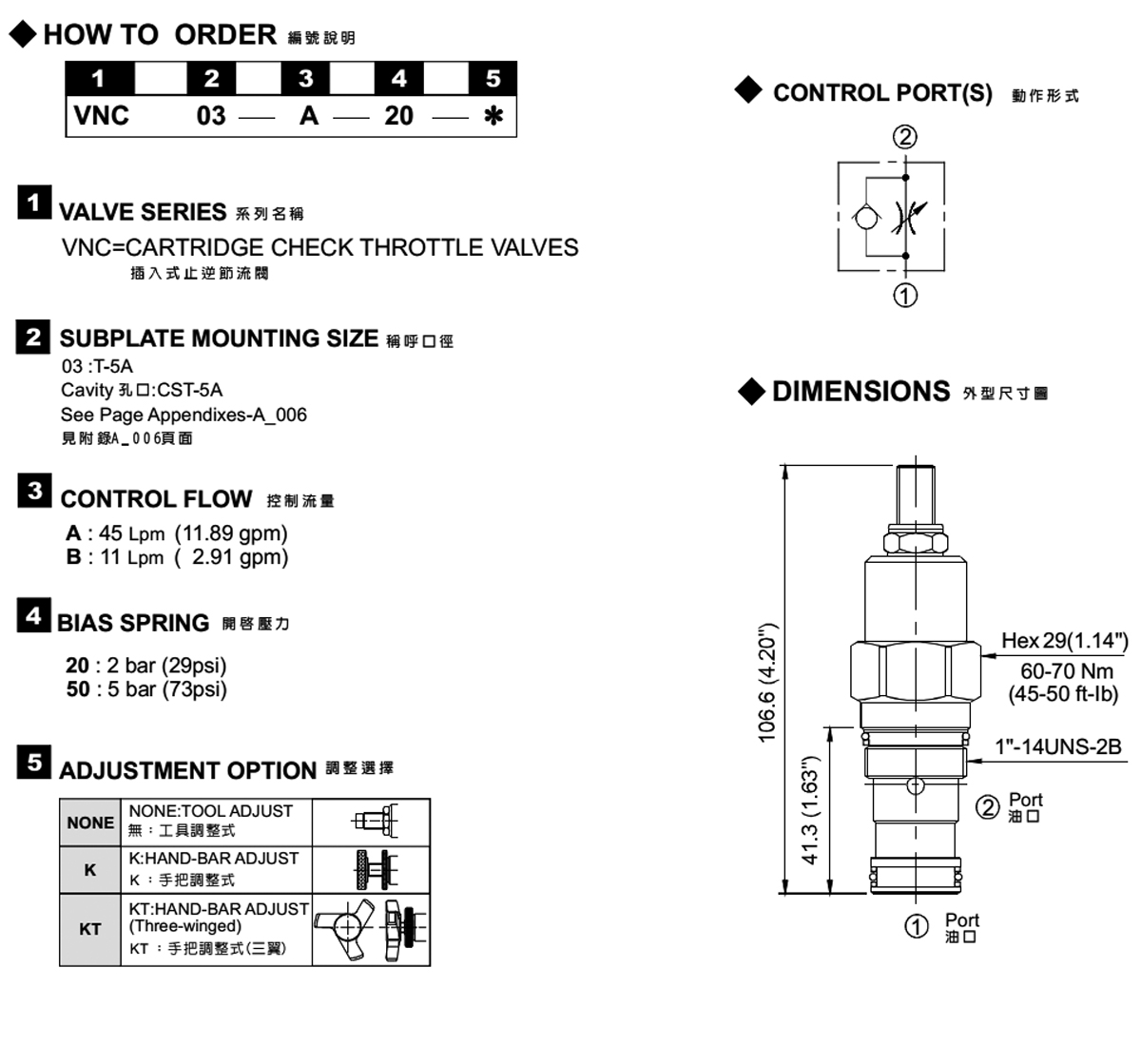

- How to Order
| Model Number | Maximum Pressure (bar) | Maximum Flow (lpm) | Weight (kg) |
|---|---|---|---|
| VNC-03 | 350 (5076 psi) | 45 (11.89 gpm) | 0.28 (0.62 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||
