Features
- A specialized flow divider/combiner valve manifold, commonly applied in hydraulic motor drive applications with uneven pressure loads caused by steering or ground conditions.
- If a pressure differential develops. Fluid will be transferred to the lower pressure port from the higher pressure port via an internal body orifice.
- In the combining mode, the internal orifice will serve to equalize load pressures, preventing combiner spool lock-up.
- Specifications

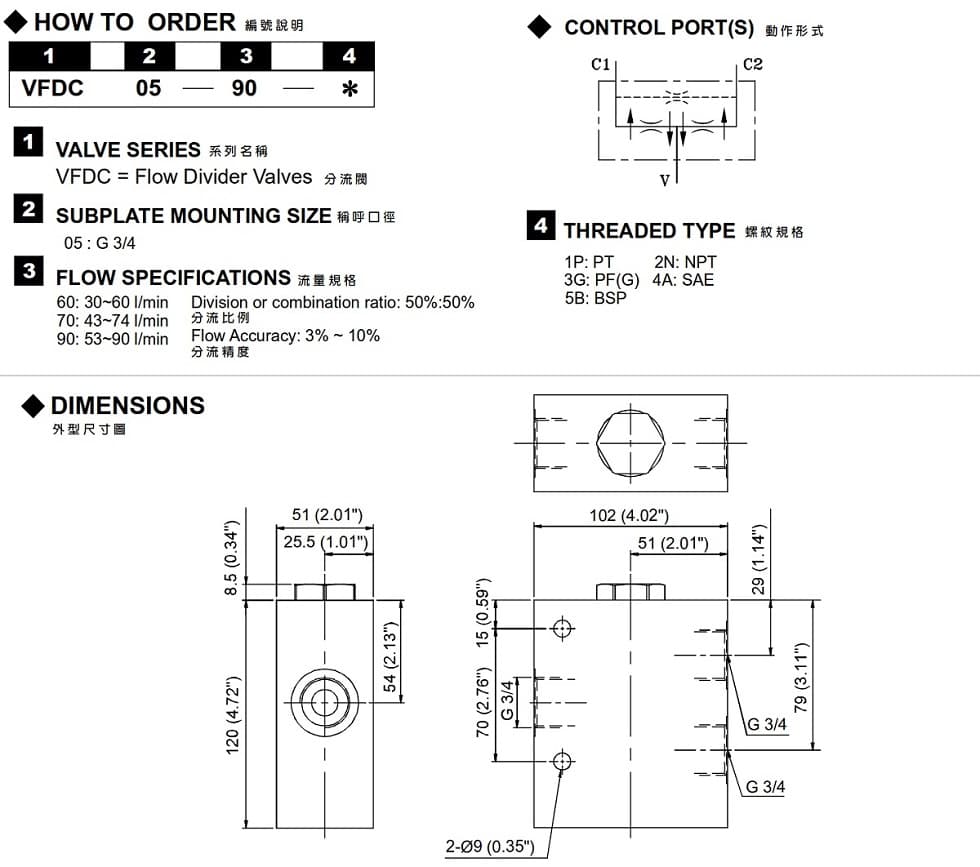

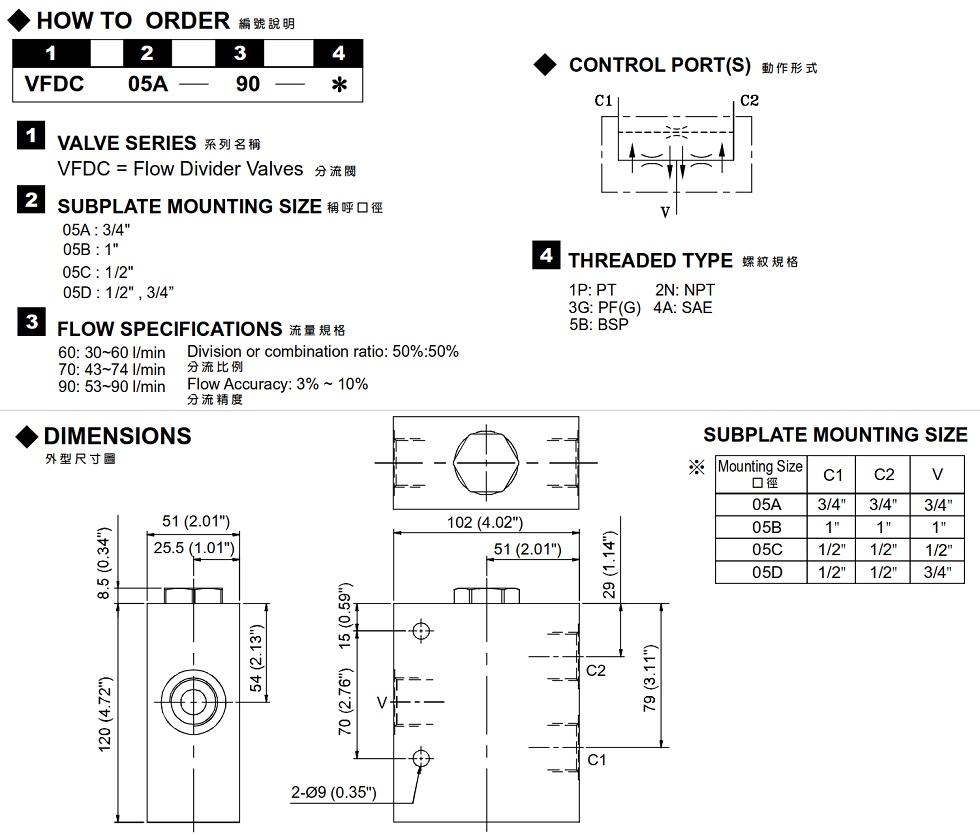

- How to Order
| Model Number | Operating Pressure (bar) | Flow (lpm) | Weight (kg) |
|---|---|---|---|
| VFDC-05 | 250 (3626 psi) | 90 (23.78 gpm) | 2.05 (4.52 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||
