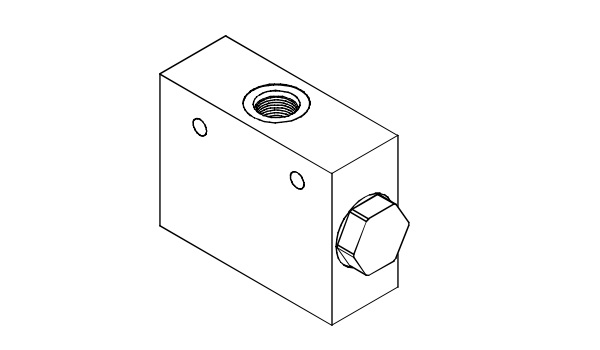

Flow Control Valves VFDC-03
- Home
- Products
- Cartridge Valves
- Flow Control
- Flow Control Valves
Features

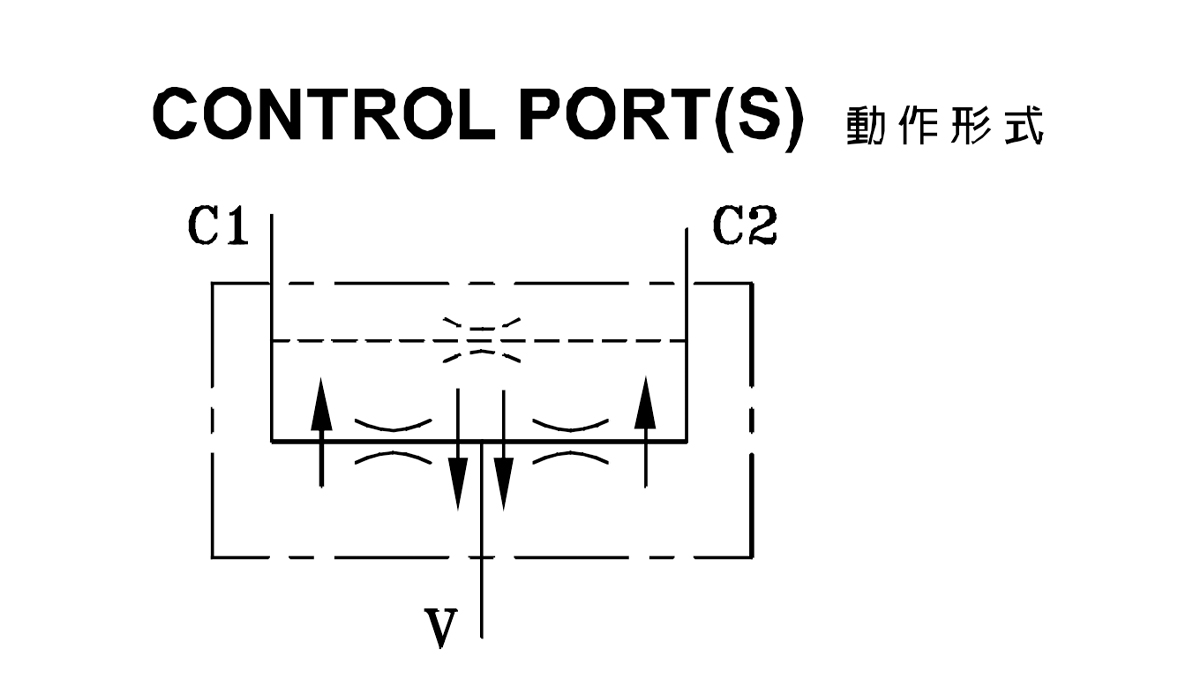

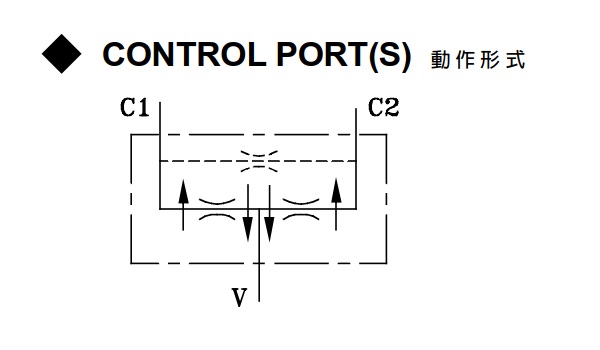

- A specialized flow divider/combiner valve manifold, commonly applied in hydraulic motor drive applications with uneven pressure loads caused by steering or ground conditions.
- If a pressure differential develops. Fluid will be transferred to the lower pressure port from the higher pressure port via an internal body orifice.
- In the combining mode, the internal orifice will serve to equalize load pressures, preventing combiner spool lock-up.
- Specifications

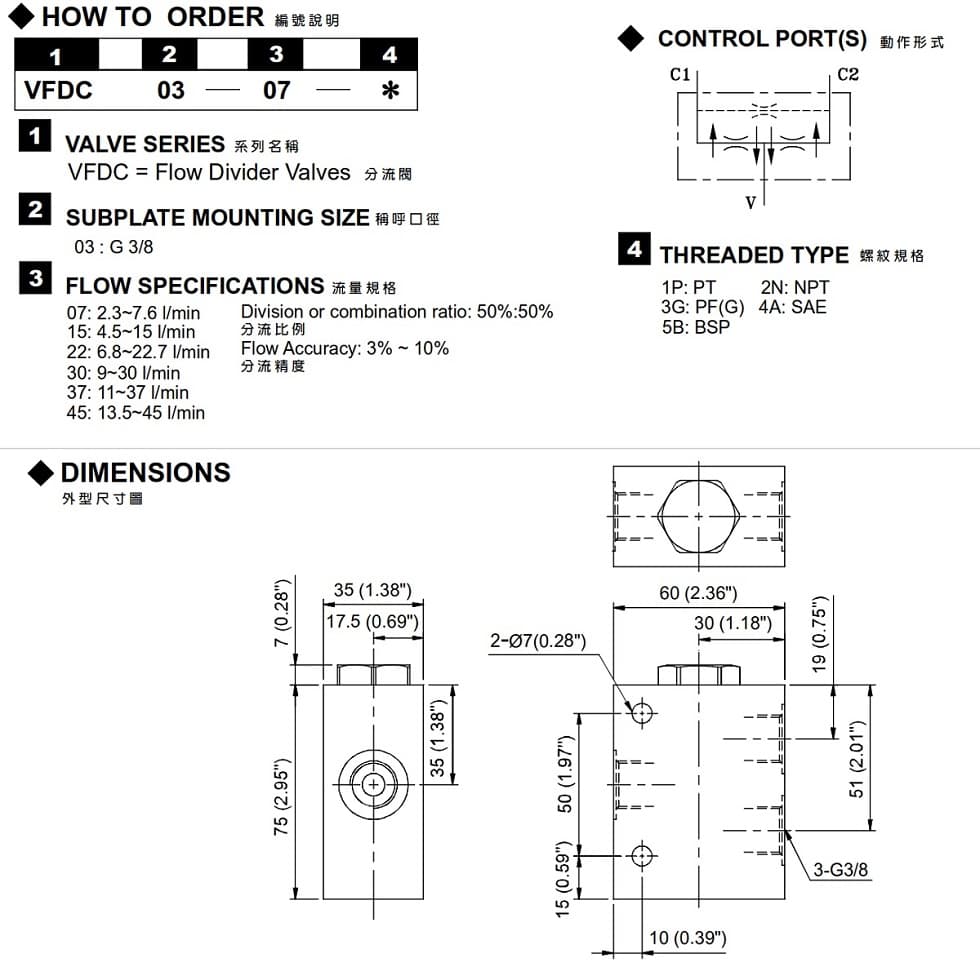

- How to Order
| Model Number | Operating Pressure (bar) | Flow (lpm) | Weight (kg) |
|---|---|---|---|
| VFDC-03 | 250 (3626 psi) | 45 (11.89 gpm) | 0.6 (1.32 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||
| Operating Temperature (°C) | -15~70 (-5~158°F) | ||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||
