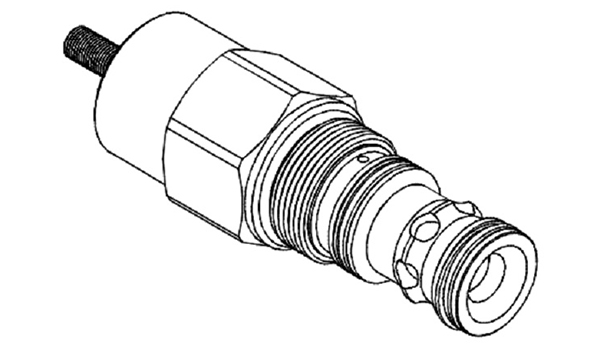

Flow Control Valves VEC-20

Features

When pressure at 1 rises above the selected spring bias pressure against the spool, the valve shifts to allow flow from 1 to 2
Pilot pressure at 3 is additive to the spring bias pressure.
The valve may be used in switching or compensation type applications.

Inquiry
PDF

Model Number	Maximum Pressure	Ratio Of Poppet Area	Maximum Flow	Weight
VEC-20	350 (5076 psi)	1:1	380 (100.39 gpm)	0.82 (1.81 lbs)
Fluid Type		ISO VG 32, 46, 68
Viscosity		10~400 (59~1854 SSU)
Operating Temperature		-30~100 (-22~212^oF)
Contamination Level		ISO4406. 21/19/16 NAS1638,10
