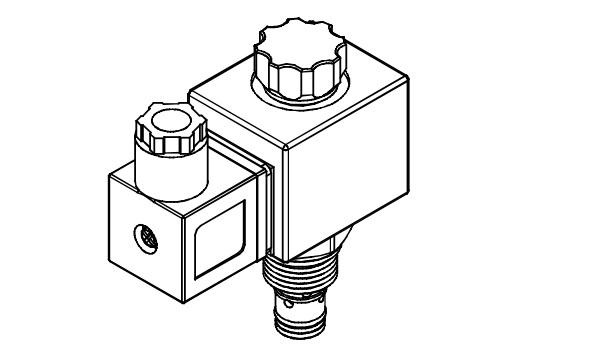

Solenoid Operated Cartridge Valves VSV08-20
- Home
- Products
- Cartridge Valves
- Directional Control
- Solenoid Operated Cartridge Valves
- Specifications

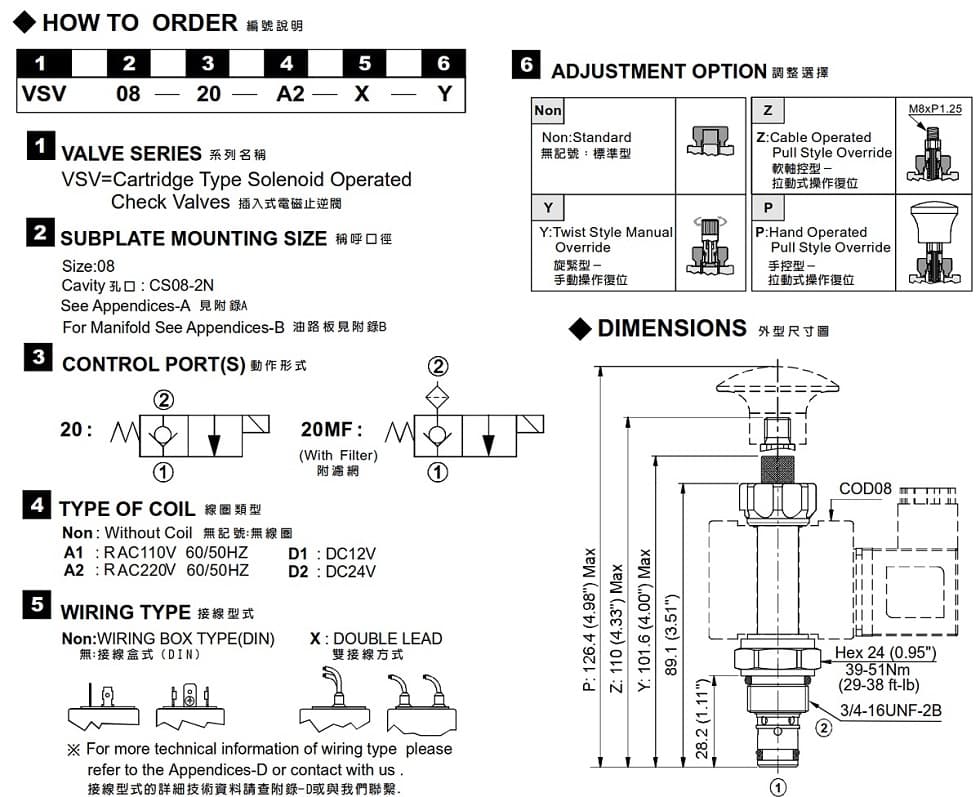

- How to Order
| Model Number | Maximum Resist Pressure | Maximum Operating Pressure | Maximum Flow | Rated Flow | Weight | |
|---|---|---|---|---|---|---|
| VSV08-20MF | 350 (5076 psi) | 250 (3626 psi) | 35 (9.25 gpm) | 30 (7.93 gpm) | 0.45 (0.99 lbs) | |
| VSV08-20 | 350 (5076 psi) | |||||
| Fluid Type | ISO VG 32, 46, 68 | |||||
| Viscosity | 10~400 (59~1854 SSU) | |||||
| Operating Temperature | -30~100 (-22~212oF) | |||||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | |||||
