Directional Valves VBV-10
- Home
- Products
- Cartridge Valves
- Directional Control
- Directional Valves
Features
- Cartridge-style,spool-type,hydraulic directional valve which operates by pressure-to-shift spring return.
It is normally used to release a spring-applied brake whenever hydraulic power is directed to move a load.

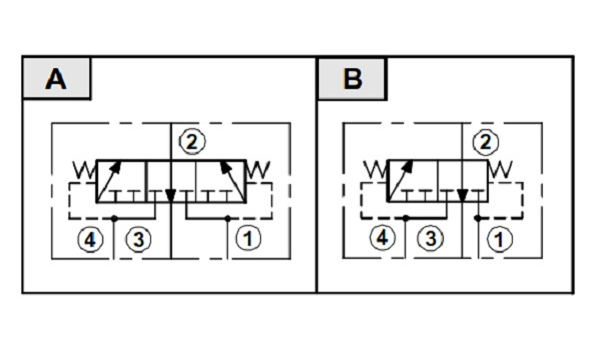

- A :The spool has moved far enough to close 2 to 3 flow. While opening the higher pressure of 1 or 4 to 2.
- B :The spool has moved far enough to close 2 to 3 flow. While opening the higher pressure of 4 to 2.
- Specifications
- How to Order
| Model Number | Maxlmum Pressure (bar) | Maximum Flow (lpm) | Weight (kg) |
|---|---|---|---|
| VBV-10 | 250 (3626 psi) | 7.5 (1.98 gpm) | 0.16 (0.35 Ibs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||
| Operating Temperature (°C) | -30~100 (-22~212 °F) | ||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||
