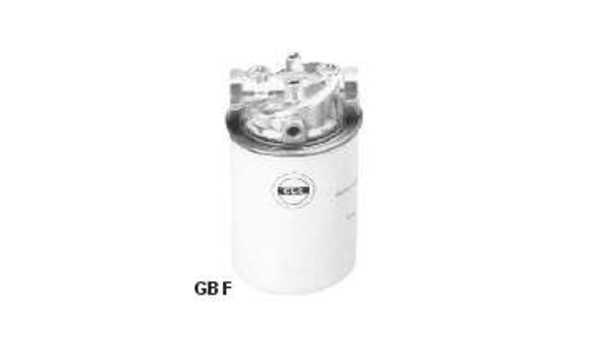

Return Filters GBF/GBF-06G
- Home
- Products
- Hydraulic Accessories
- Suction Filters
- Return Filters
- Specifications

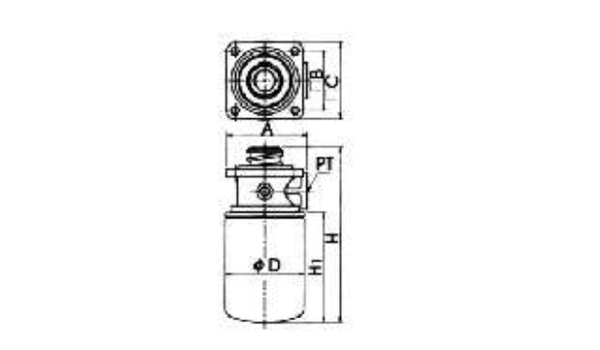

| Model | PT | A (mm) | B (mm) | C (mm) | D (mm) | H1 (mm) | H (mm) | Flow (l/min) | Mounted | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| GBF-06 | 3/4" | 92 | 38 | 82 | 93 | 127 | 170 | 60 | Plplng | 0.62 |
| GBF-06G | 3/4" | 97 | 70 | 90 | 93 | 127 | 207 | 60 | Tank | 0.87 |
| GBF-10 | 1 1/4" | 137 | 48 | 136 | 128 | 167 | 236 | 144 | Plplng | 1.84 |
