Fixed Displacement Vane Pumps & Motor Set SMVP-1, SMNP-2
- Home
- Products
- Hydraulic Accessories
- Pumps
- Fixed Displacement Vane Pumps & Motor Set
Features
- Direct motor is seasy used to combine fixed with variable disp lacement vane pumps.
- Save space, high concentricity and low noise level.
- The pressure flow curve of pump and variable pumip HP house power curve see the same parts of pump.
- Special motor control manner or motor set available on request.
- Specifications

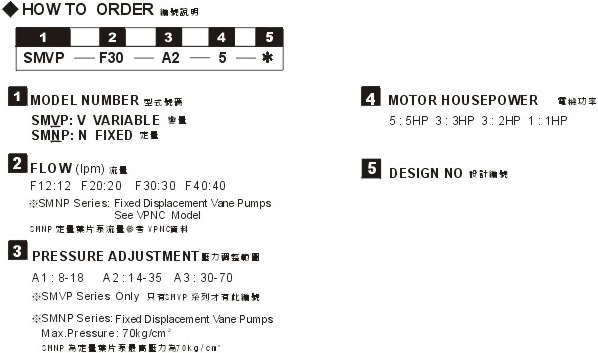

- How to Order
| Model | Motor | HP | Pumps |
|---|---|---|---|
| SMVP-*-*-1-* | 1HP/ 4P3∅ 380/ 50Hz | 1HP | VPVC-F12/ F20-* |
| SMVP-*-*-2-* | 2HP/ 4P3∅ 380/ 50Hz | 2HP | VPVC-F12/ F20-* |
| SMVP-*-*-2-* | 2HP/ 4P3∅ 380/ 50Hz | 2HP | VPVC-F30/ F40-* |
| SMVP-*-*-3-* | 3HP/ 4P3∅ 380/ 50Hz | 3HP | VPVC-F30/ F40-* |
| SMVP-*-*-3-* | 3HP/ 4P3∅ 380/ 50Hz | 3HP | VPVC-F ** |
| SMVP-*-*-5-* | 5HP/ 4P3∅ 380/ 50Hz | 5HP | VPVC-F ** |
- Remark: The variable pump HP see the pump.
