TL4 Series TL4-70
- Home
- Products
- Hydraulic Accessories
- Oil Cooler
- TL4 Series

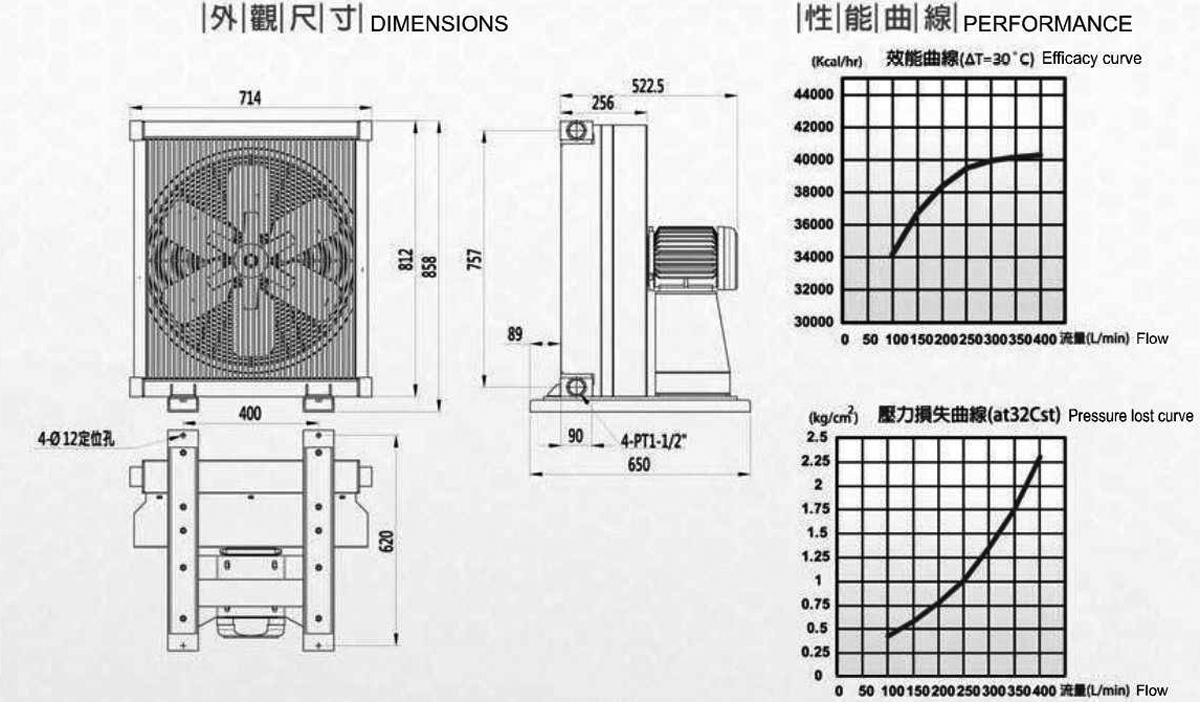

- Specifications
- How to Order
| Flow (L/min) |
Maximum Antipyretic (Lcal/hr) |
Pressure (kg/cm2) |
Voltage (V,±10%) |
Frequency (Hz) |
Current (A) |
Capacity (Watt) |
Speed (RPM) |
Air (m3/hr) |
Protection (IP) |
Noise Value (dB(A)) |
Fan Certifcation | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 | 40000 | 20 | 220 | 60 | 5.7 | 1.25 | 1720 | 8560 | 55 | 90 | CE | 80.0 |
| 380 | 60 | 3.3 | 1.25 | 1720 | 8560 | 90 |
- When the cooler is applied with hydraulic system, in order not to be broken by surge in the system. Suggest installing the oil reducing device.
- Best how-to-use: using another pump to draw the oil in the fuel tank into the cooler cooled. Make it an individual recycled circuit.
- If the data sheets above changed, based on actual products.
- If you have any special inquiry of this product, please feel free to contact with us.
