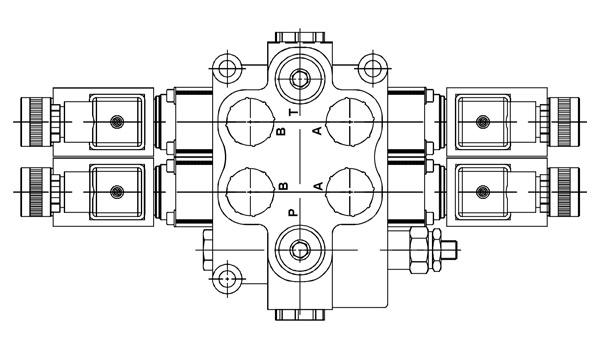

Stack Valve DME-03, DME-04
- Specifications
- How to Order
Model Number | Maximum Pressure | Maximum Flow | Weight |
---|---|---|---|
DME-03-**-** | 350 (5075 psi) | 45 (11.9 gpm) | * |
DME-04-**-** | 350 (5075 psi) | 70 (18.5 gpm) | * |
Fluid Type | ISO VG 32, 46, 68 | ||
Viscosity | 10~400 (59~1854 SSU) | ||
Operating Temperature | -30~100 (-22~212oF) | ||
Contamination Level | ISO4406. 21/19/16 NAS1638,10 |
- Standard pressure of rellef valve aets at 210 bar.
- ※Any request of setting pressure at 350 bar, please inform CW in advance.
- ※For relief valves, please refer to VRV-03 series.
