Pressure Control Valves VRBT-02

Features

  • Pilot-operated pressure reducing/relieving valves reduce a high primary pressure at the inlet (port 2) to a constant reduced pressure at port 1, with a full-flow relief function from port 1 to tank (port 3). Draining the pilot section at port 4 makes these valves insensitive to pressure at tank.

Inquiry
PDF
  • Specifications

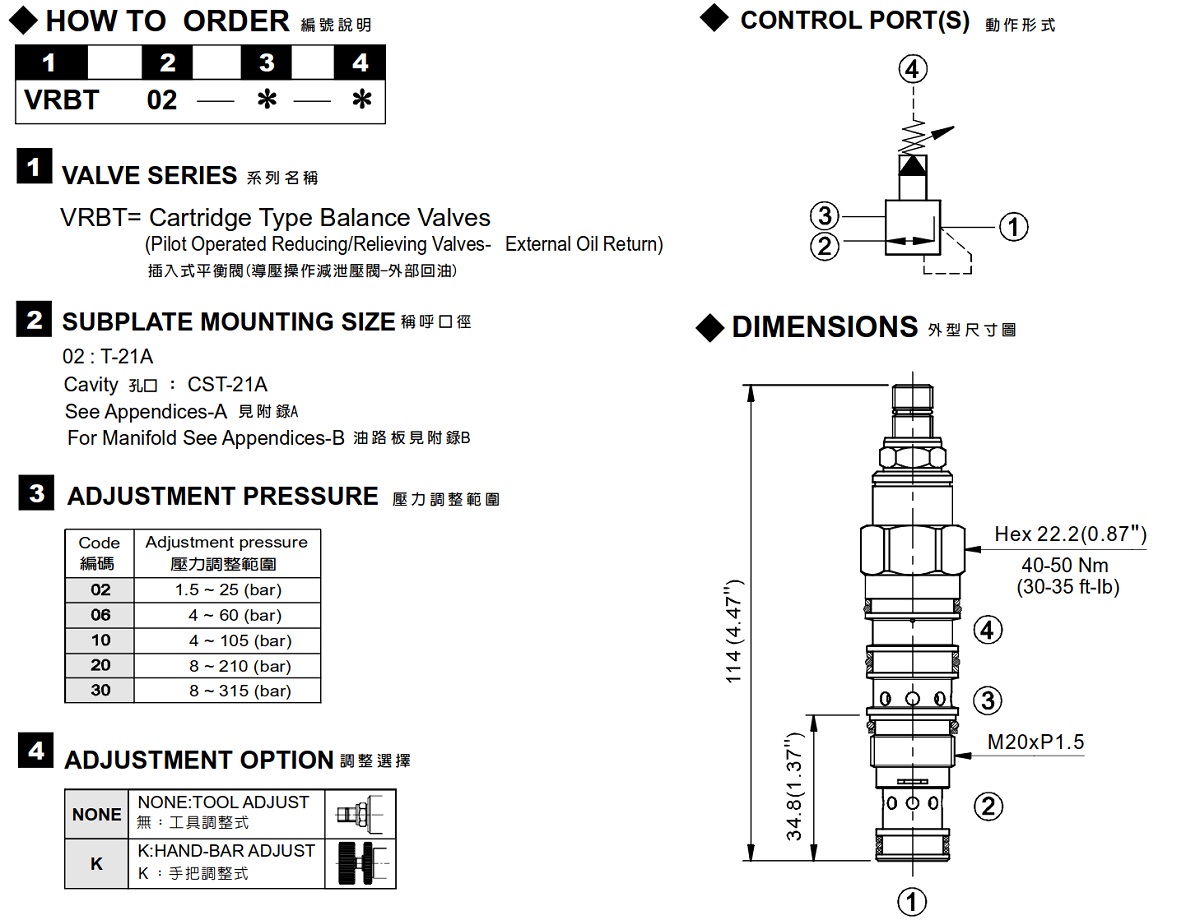

  • How to Order
Model Number Maximum Pressure (bar) Maximum Flow (lpm) Weight (kg)
VRBT-02 350 (5076 psi) 40 (10.57 gpm) 0.21 (0.42 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity (cSt) 10~400 (59~1854 SSU)
Operating Temperature (°C) -30~100 (-22~212°F)
Contamination Level ISO4406. 20/18/15    NAS1638. 9
