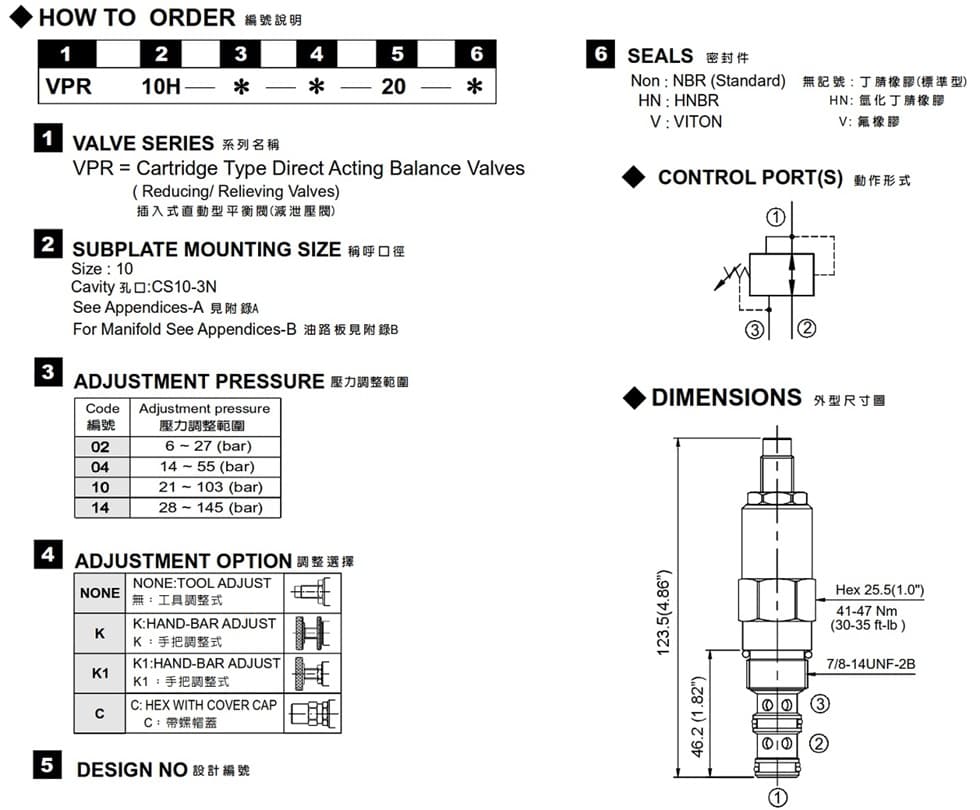

Pressure Control Valves VPR-10H

Features

Direct-acting, Spool-type, hydraulic pressure reducing/relieving valve designed to act as a pressure-regulating device for secondary circuits.

Inquiry
PDF

Model Number	Operating Pressure (bar)	Flow (lpm)	Weight (kg)
VPR-10H	207 (3002 psi)	30 (7.93 gpm)	0.26 (0.57 lbs)
Fluid Type		ISO VG 32, 46, 68
Viscosity (cSt)		10~400 (59~1854 SSU)
Operating Temperature (°C)		-30~100 (-22~212°F)
Contamination Level		ISO4406. 20/18/15 NAS1638. 9
