Pressure Control Valves VDB-03

  • Specifications

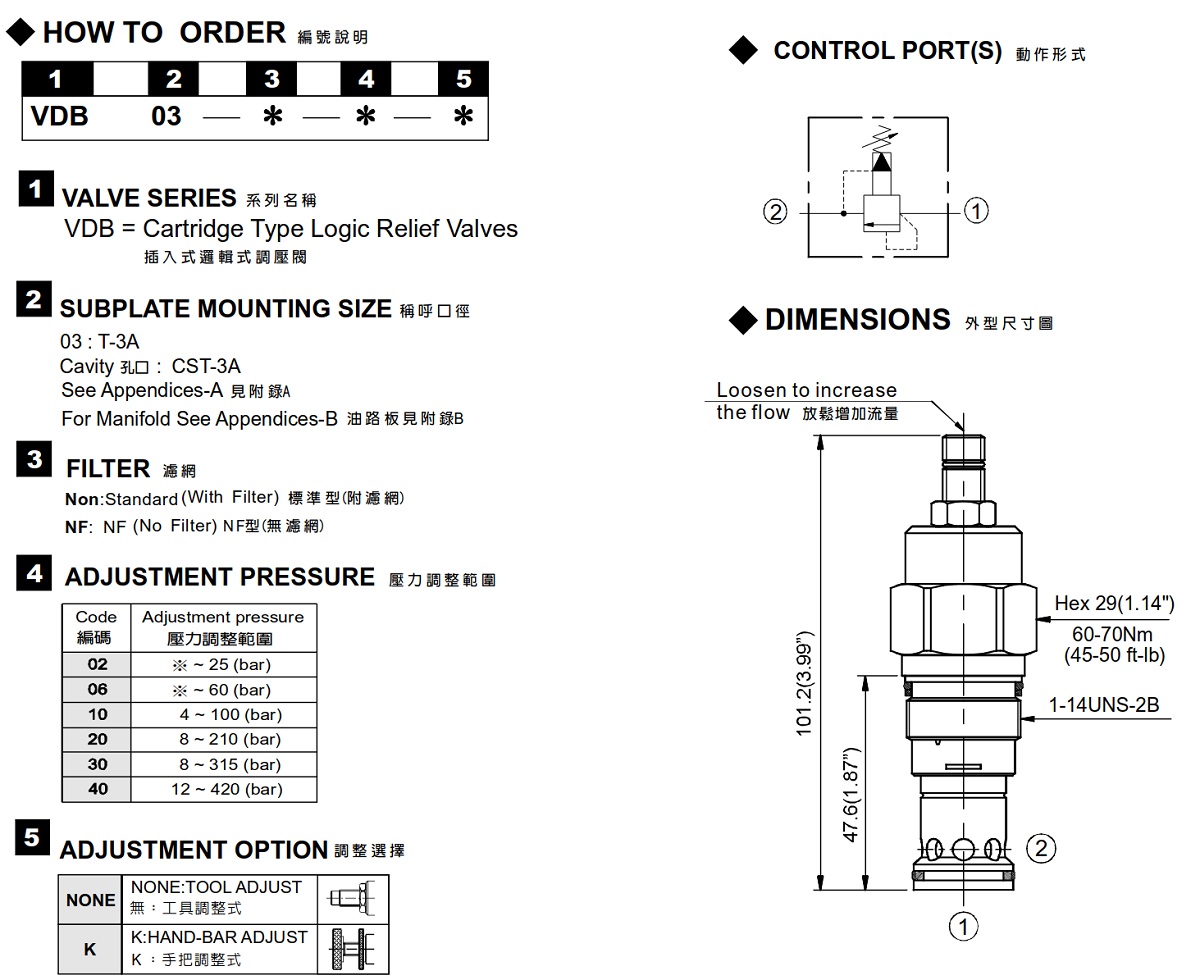

  • How to Order
Model Number Maximum Pressure (bar) Maximum Flow (lpm) Weight (kg)
VDB-03 420 (6092 psi) 200 (52.83 gpm) 0.28 (0.62 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity (cSt) 10~400 (59~1854 SSU)
Operating Temperature (°C) -30~100 (-22~212°F)
Contamination Level ISO4406. 20/18/15    NAS1638. 9
