Pressure Control Valves VCBW-06
- Home
- Products
- Cartridge Valves
- Pressure Control
- Pressure Control Valves
Features
- Atmospherically-vented counterbalance valves with pilot assist are meant to control an overrunning load.
- A direct-acting, pilot-assisted relief valve controls flow from port 1 to port 2.
- Port 3 as a pilot assist orifice lowers the effective setting of the relief valve at a rate determined by the pilot ratio.
- Specifications

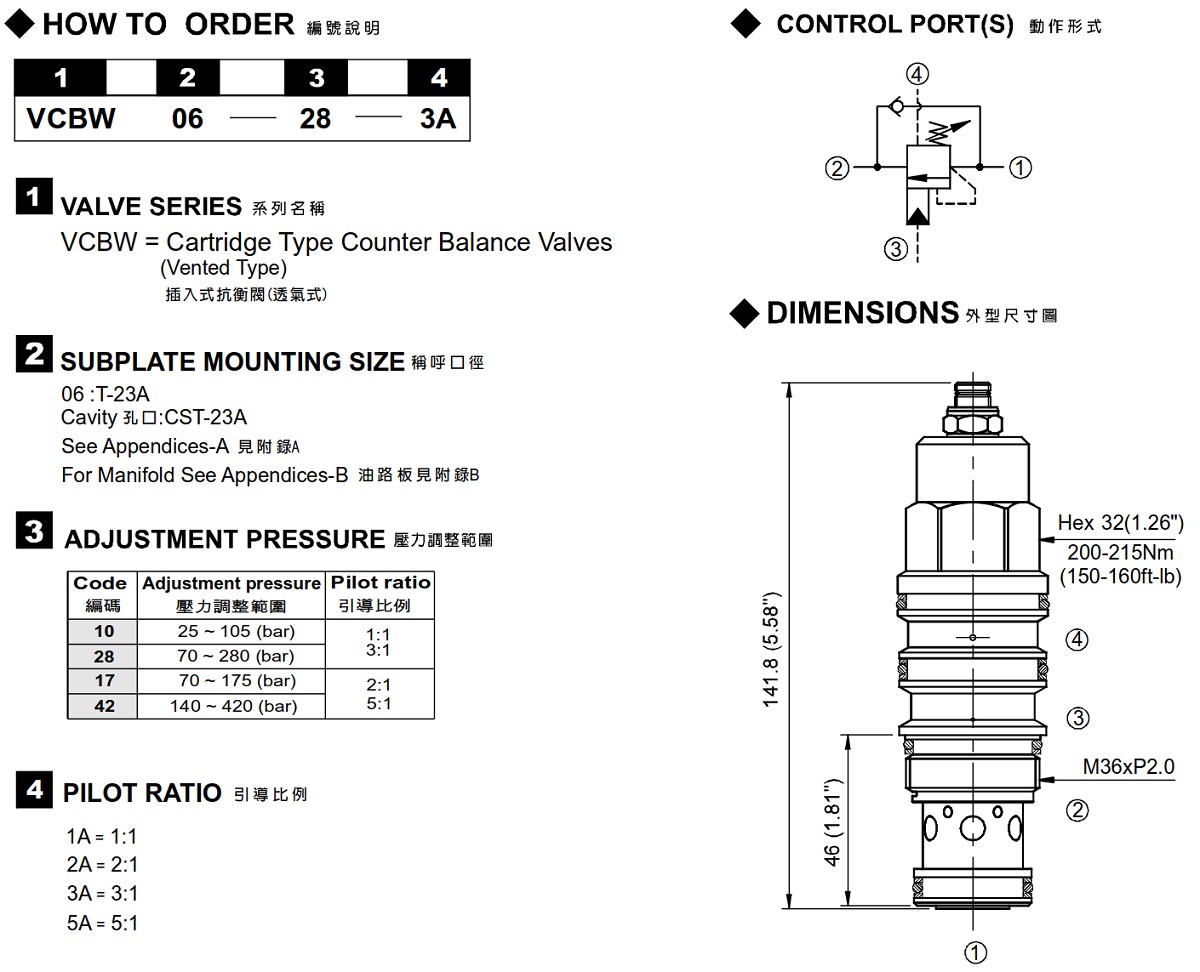

- How to Order
| Model Number | Maximum Pressure (bar) |
Pliot Ratlo | Adjustment Pressure (bar) |
Check Cracking Pressure (bar) | Maximum Flow (lpm) |
Weight (kg) |
|---|---|---|---|---|---|---|
| VCBW-06 | 420 (6092 psi) | 1:1 / 2:1 / 3:1 / 5:1 | *~420 | 2.8 (40.61 psi) | 240 (63.4 gpm) | 0.76 (1.68 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | |||||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | |||||
| Operating Temperature (°C) | -30~100 (-22~212°F) | |||||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | |||||
