Pressure Control Valves VCBM-06
- Home
- Products
- Cartridge Valves
- Pressure Control
- Pressure Control Valves
Features

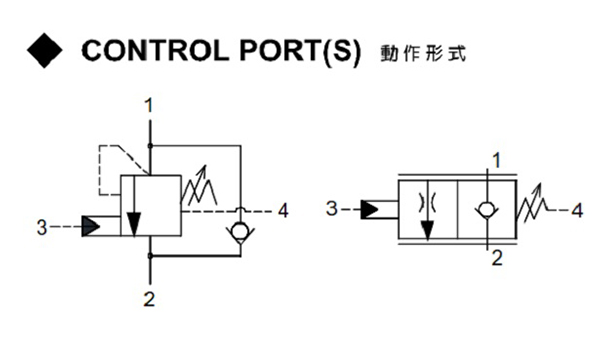

- Vented, load reactive, load control valves with pilot assist combine two valves' function; a check valve and a relief valve. The check valve allows free flow from the directional valve (port 2) to the load (port 1) while a direct-acting, pilot assisted relief valve controls flow from port 1 to port 2. Pilot assist at port 3 of the relief valve, at a rate determined by the pilot ratio, through the vent (port 4).
- Specifications
- How to Order
| Model Number | Maximum Pressure (bar) |
Pliot Ratlo | Adjustment Pressure (bar) |
Maximum Flow (lpm) |
Weight (kg) |
|---|---|---|---|---|---|
| VCBM-06 | 350 (5076 psi) | 1.5:1 / 3:1 / 4.5:1 | *~350 | 240 (63.40 gpm) | 1 (2.20 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||||
