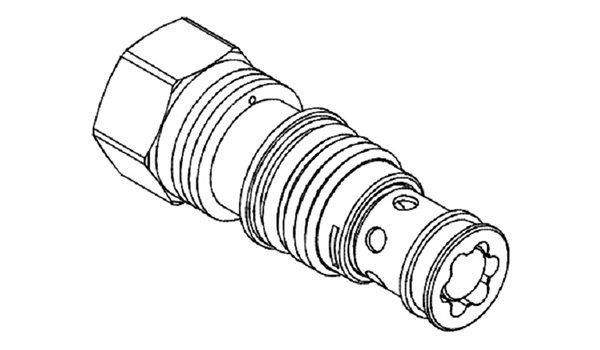

Pressure Control Valves VCBAO-02
- Home
- Products
- Cartridge Valves
- Pressure Control
- Pressure Control Valves
- Specifications
- How to Order
| Model Number | Maximum Pressure (bar) |
Pliot Ratlo | Adjustment Pressure (bar) |
Maximum Flow (lpm) |
Weight (kg) |
|---|---|---|---|---|---|
| VCBAO-02 | 350 (5076 psi) | 3:1 / 4.5:1 / 10:1 | *~345 | 20 (5.28 gpm) | 0.14 (0.30 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||||
