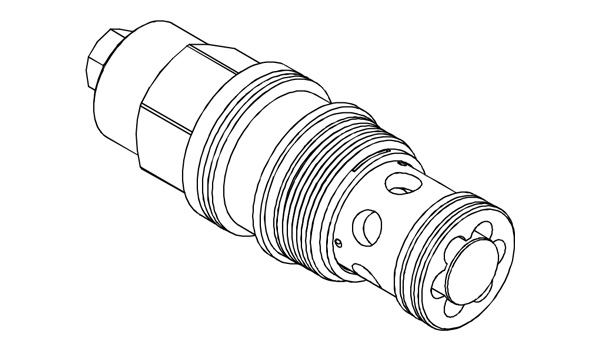

Pressure Control Valves VCB-10
- Home
- Products
- Cartridge Valves
- Pressure Control
- Pressure Control Valves
- Specifications
- How to Order
| Model Number | Maximum Pressure bar | Pliot Ratlo | Adjustment Pressure bar | Maximum Flow lpm | Weight Kg |
|---|---|---|---|---|---|
| VCB-10 | 350 (5076 psi) | 1.5:1 / 2:1 / 2.3:1 /3:1 / 4.5:1 / 10:1 | *~350 | 480 (126.80 gpm) | 1.6 (3.53 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity | 10~400 (59~1854 SSU) | ||||
| Operating Temperature | -30~100 (-22~212°F) | ||||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||||
