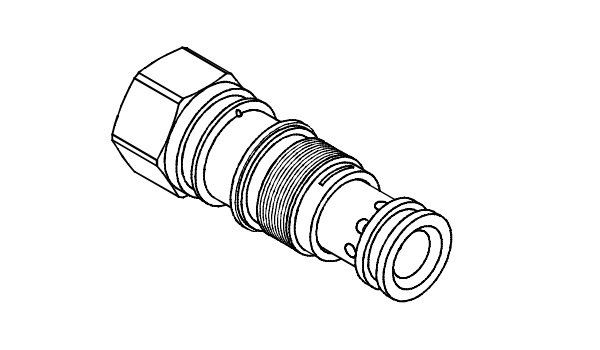

Pressure Control Valves VBRO-02
- Home
- Products
- Cartridge Valves
- Pressure Control
- Pressure Control Valves
Features

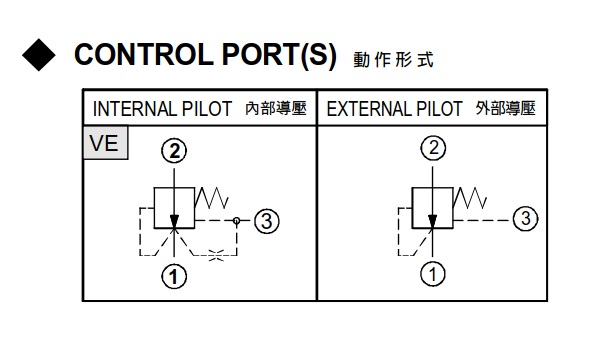

- VE-Internal Pilot :
These normally open modulating elements with an internal orifice between port 1 and port 3 can be used as amain-stage reducing valve. The valve can be controlled remotely using a pilot relief or pilot solenoid valve. - External Pilot :
Normally open modulating elements without an internal orifice act as a restrictive compensator to maintain aconstant pressure drop across an orifice, regardless of variations in upstream or downstream pressure.
- Specifications
- How to Order
| Model Number | Maximum Pressure | Maximum Flow | Weight |
|---|---|---|---|
| VRQ-03 | 350 (5076 psi) | 30 (7.93 gpm) | 0.1 (0.22 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity | 10~400 (59~1854 SSU) | ||
| Operating Temperature | -15~70 (-5~158oF) | ||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||
