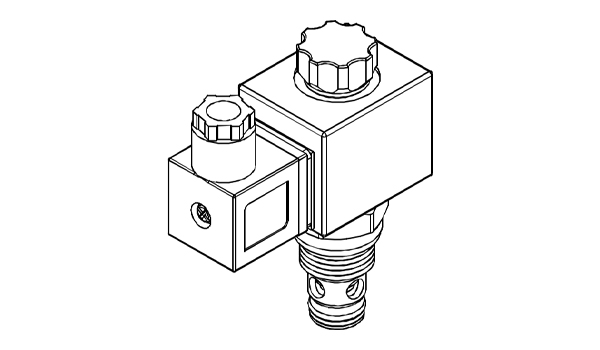

Solenoid Operated Cartridge Valves VSV10-20S
- Home
- Products
- Cartridge Valves
- Directional Control
- Solenoid Operated Cartridge Valves
Features
- The only difference between this valve and the standard model is a spring placed between pilot section and poppet.
- This design allows faster response times with very small flow or even virtually zero flow.
- A pressure of approximately 4 bar (58 psi) is required to open the main poppet.
- Specifications
- How to Order
| Model Number | Maximum Pressure (bar) | Maximum Flow (lpm) | Weight (kg) |
|---|---|---|---|
| VSV10-20S | 350 (5076 psi) | 70 (18.49 gpm) | 0.5 (1.10 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||
| Operating Temperature (°C) | -30~100 (-22~212 °F) | ||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||
