Cartridge Type Solenoid Operated Check Valves VSV10-20-Oil-Passage-Board
- Home
- Products
- Cartridge Valves
- Directional Control
- Cartridge Type Solenoid Operated Check Valves
- Specifications

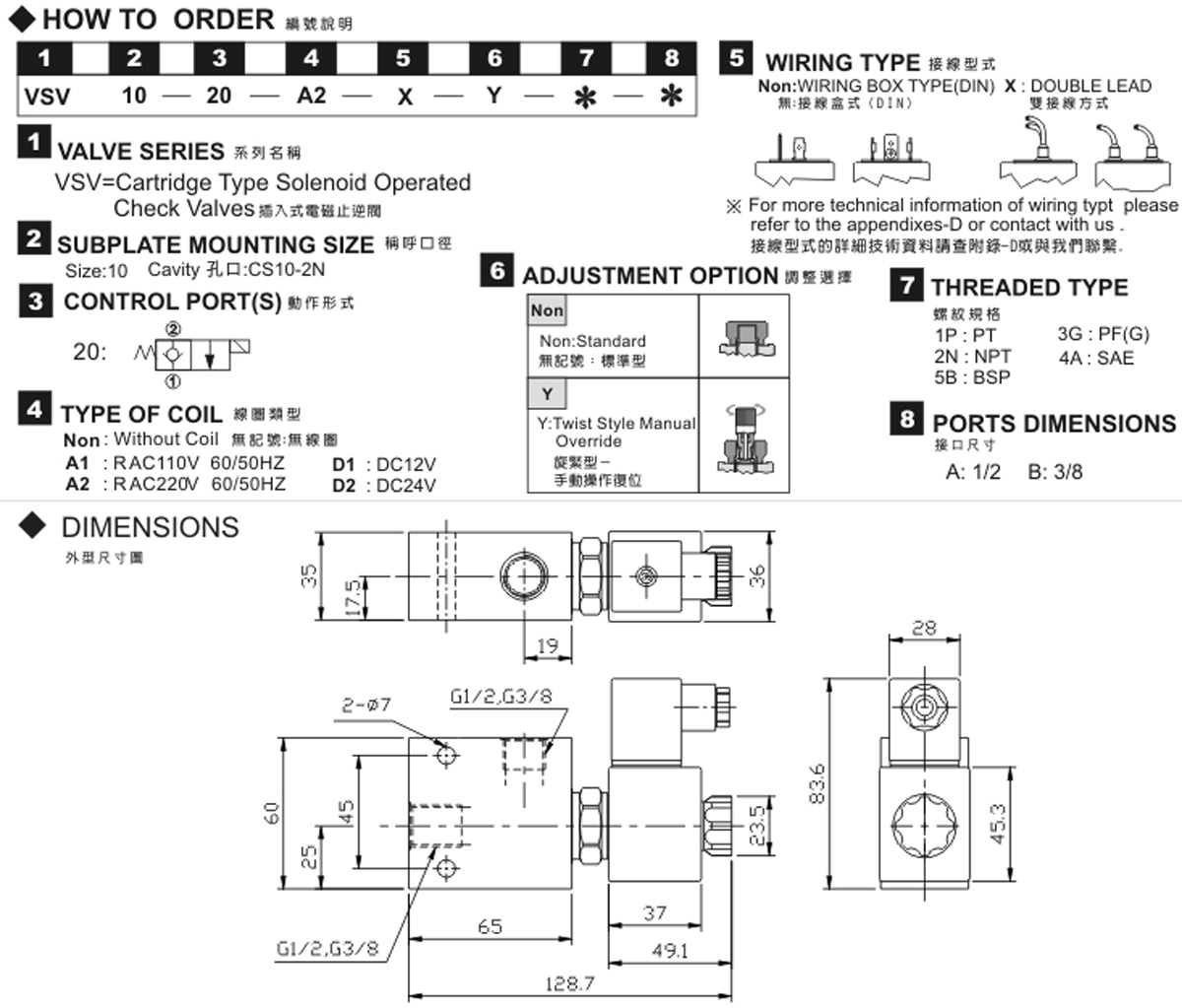

- How to Order
| Model Number | Operating Pressure | Maximum Flow | Weight | |
|---|---|---|---|---|
| VSV10-20 | 350 (5076 psi) | 70 (18.48 gpm) | 0.87 (1.92 lbs) | |
| Fluid Type | ISO VG 32, 46, 68 | |||
| Viscosity | 10~400 (59~1854 SSU) | |||
| Operating Temperature | -15~70 (-5~158oF) | |||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | |||
- Note: The maximux allowble pressure for the standard aluminum-alloy valves is 250 bar, we also supply the nodular ductile-iron and steel valves; contact our factory for details.
