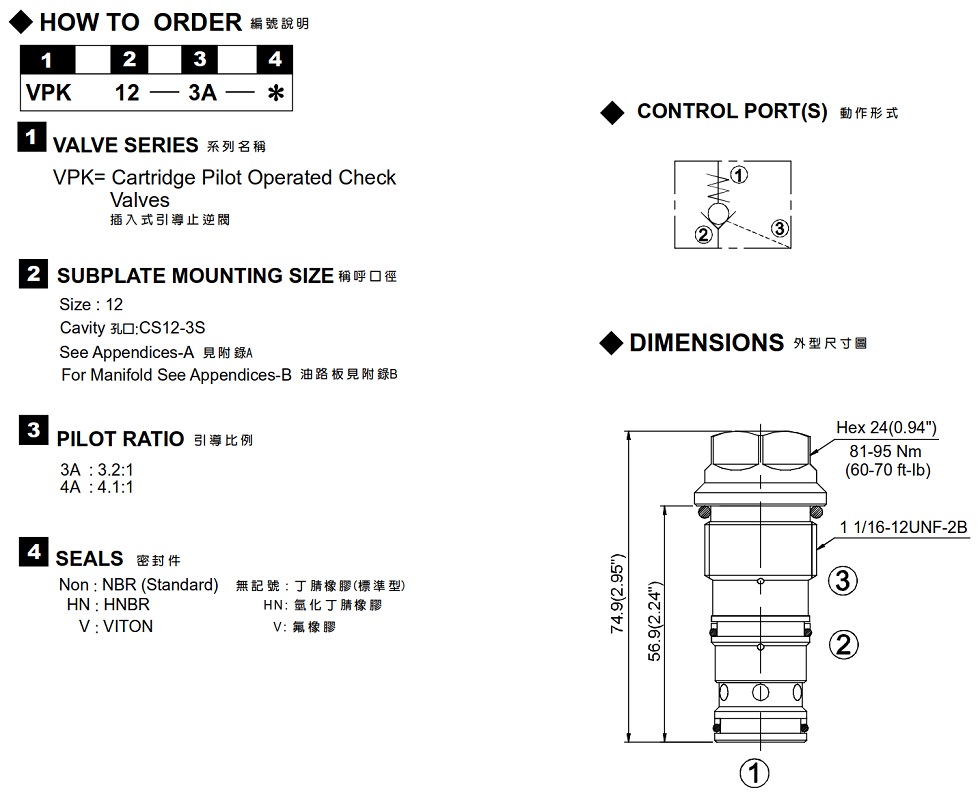

- How to Order
| Model Number | Maximum Pressure (bar) | Cracking Pressure (bar) | Pilot Ratio | Maximum Flow (lpm) | Weight (kg) |
|---|---|---|---|---|---|
| VPK-12 | 350 (5076 psi) | 2 (29 psi) | 3.2:1 | 120 (31.70 gpm) | 0.26 (0.57 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||||
