Features
- This is a normally closed, balanced poppet, switching element. Pilot pressure at port 3 shifts the valve to the open position.
- Available in external atmospheric vent (X control) or static external drain (E control) configurations.
- The external vent port can be connected to drain if the static drain port option (control option E) is selected. Removing the vent plug will convert an X control to an E control.
- Specifications

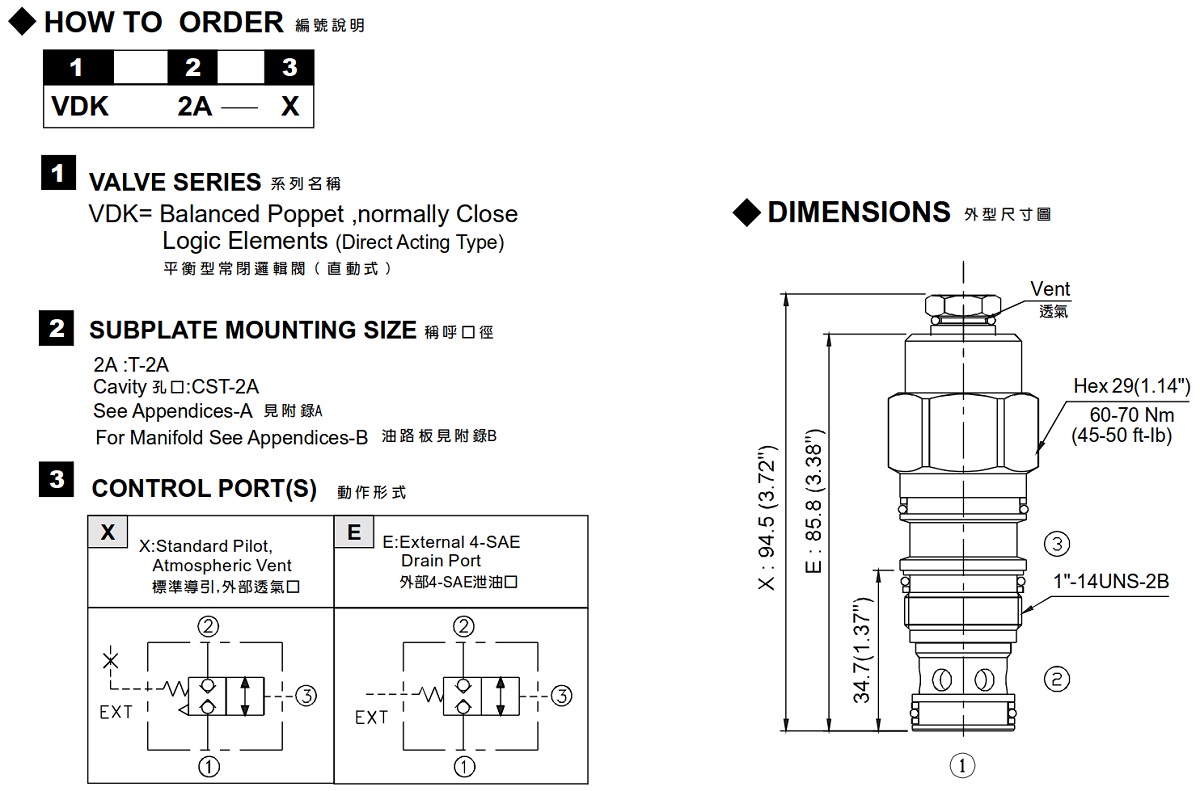

- How to Order
| Model Number | Maximum Pressure (bar) | Spring Pressure (bar) | Pilot Pressure (bar) | Flow (lpm) | Weight (kg) |
|---|---|---|---|---|---|
| VDK-2A | 350 (5076 psi) | 14 (203 psi) | 20 (290 psi) | 120 (31.70 gpm) | 0.3 (0.66 Ibs) |
| Fluid Type | ISO VG 32, 46, 68 | ||||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | ||||
| Operating Temperature (°C) | -30~100 (-22~212°F) | ||||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | ||||
