Features
- This valve is a pilot to open check valve which is vented. The valve is insensitive to pressure at port 2 because the spring chamber is referenced out the back of the hex body.
- This type of atmospherically referenced pilot-to-open check valves will eventually leak externally or allow moisture into the spring chamber.
- Specifications

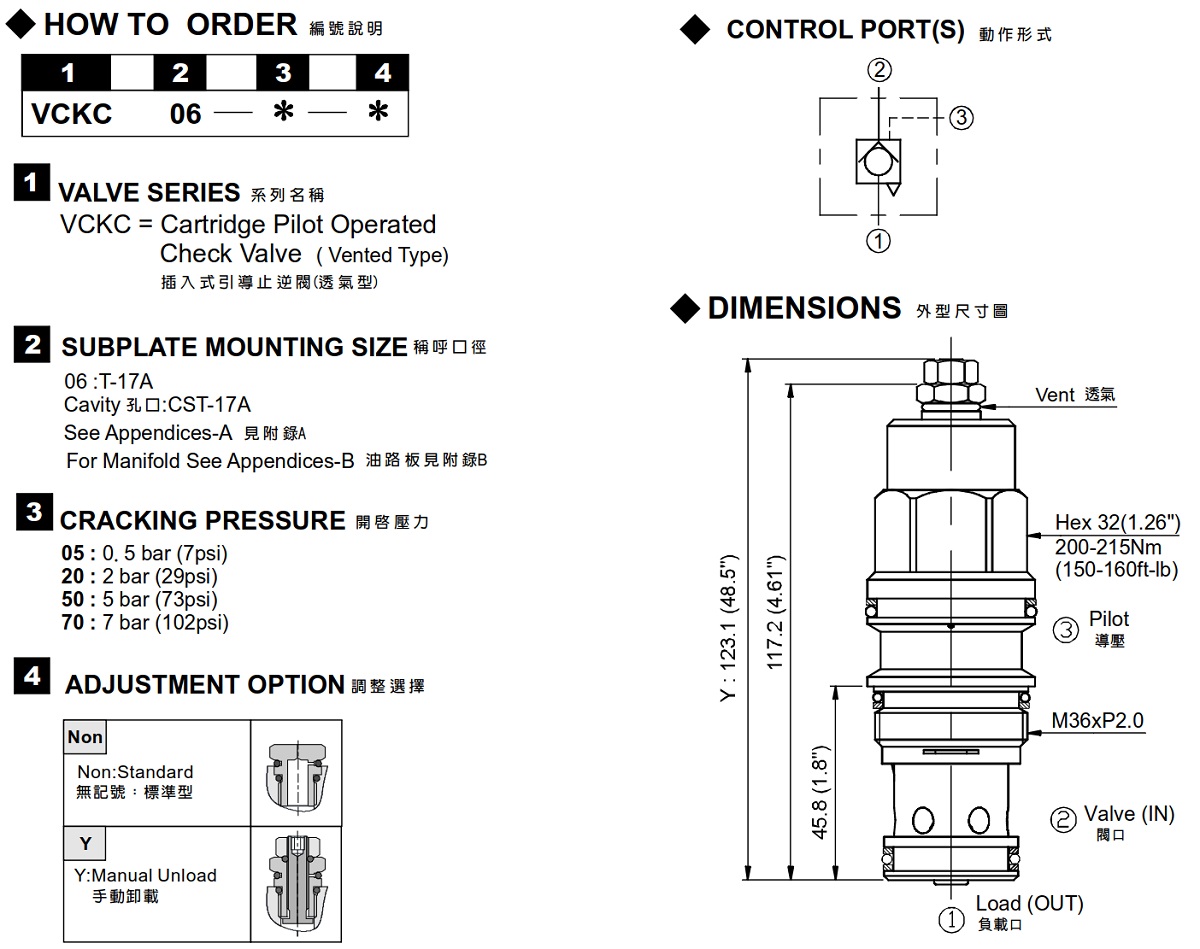

- How to Order
| Model Number | Maximum Pressure (bar) | Pilot Ratio | Maximum Flow (lpm) | Weight (kg) |
|---|---|---|---|---|
| VCKC-06 | 350 (5076 psi) | 3:1 | 240 (63.4 gpm) | 0.33 (0.73lbs) |
| Fluid Type | ISO VG 32, 46, 68 | |||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | |||
| Operating Temperature (°C) | -30~100 (-22~212°F) | |||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 | |||
