Directional Valves VSHL-31A
- Home
- Products
- Cartridge Valves
- Directional Control
- Directional Valves
Features

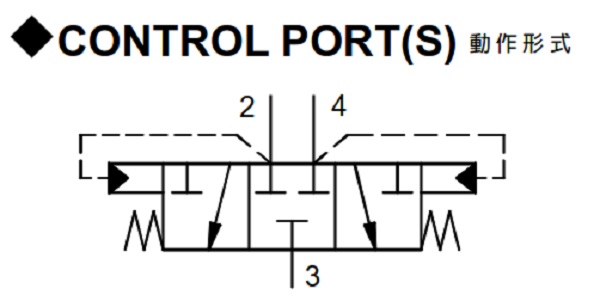

- Low-side (hot oil) shuttle cartridges allow hot oil to be diverted from the low pressure side of a closed loop system. When both work ports (ports 2 and 4) are at equal pressures, the valve is spring-centered to an all-ports-blocked position. When one of the work ports (port 2 or 4) sees a higher pressure the opposite work port is connected to the common port (port 3). The hydraulic stop results in a small pilot flow of 0.4L from the high side work port (port 2 or 4) to port (port 3). The hot oil relief setting can be confirmed with the transmission in neutral. The nose (port 1) is not used.
- Specifications

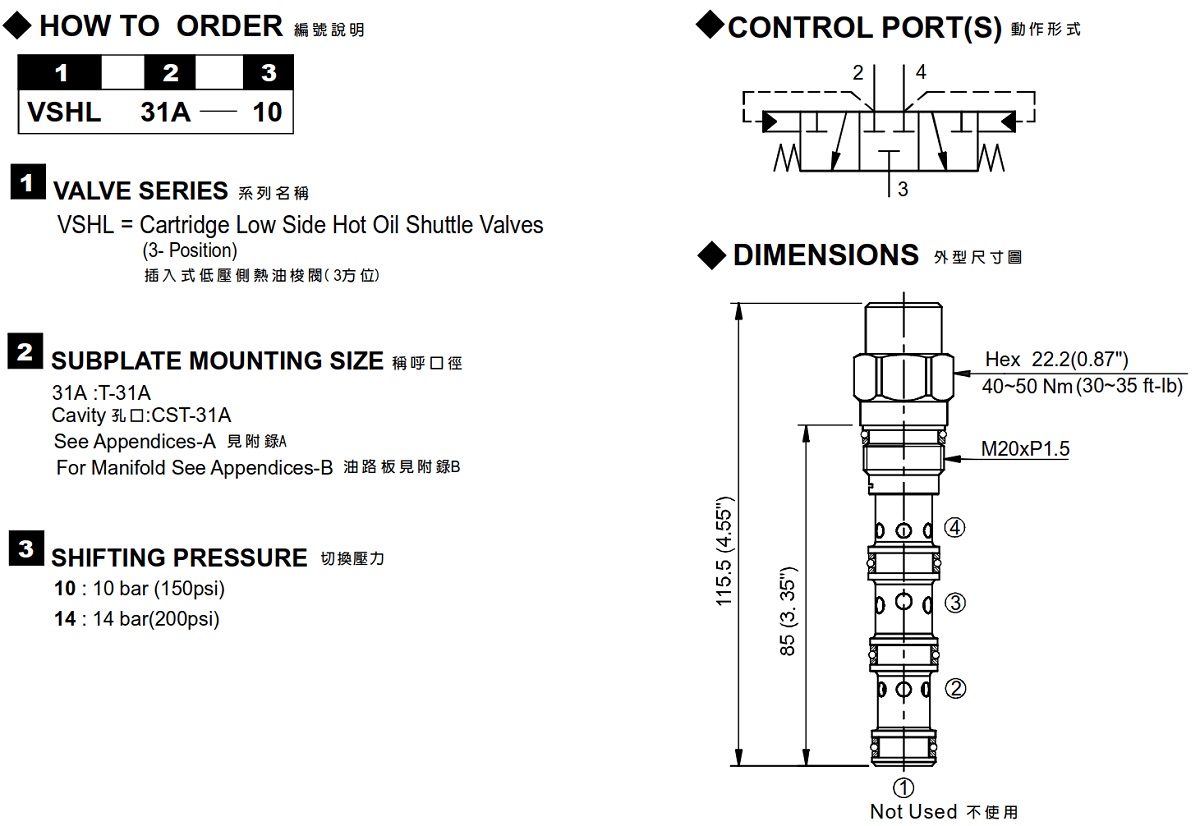

- How to Order
| Model Number | Operating Pressure (bar) | Flow (lpm) | Weight (kg) | |
|---|---|---|---|---|
| VSHL-31A | 350 (5076 psi) | 40 (10.57gpm) | 0.19 (0.42 lbs) | |
| Fluid Type | ISO VG 32, 46, 68 | |||
| Viscosity (cSt) | 10~400 (59~1854 SSU) | |||
| Operating Temperature (°C) | -30~100 (-22~212°F) | |||
| Contamination Level | ISO4406. 20/18/15 NAS1638. 9 |
|||
