Features

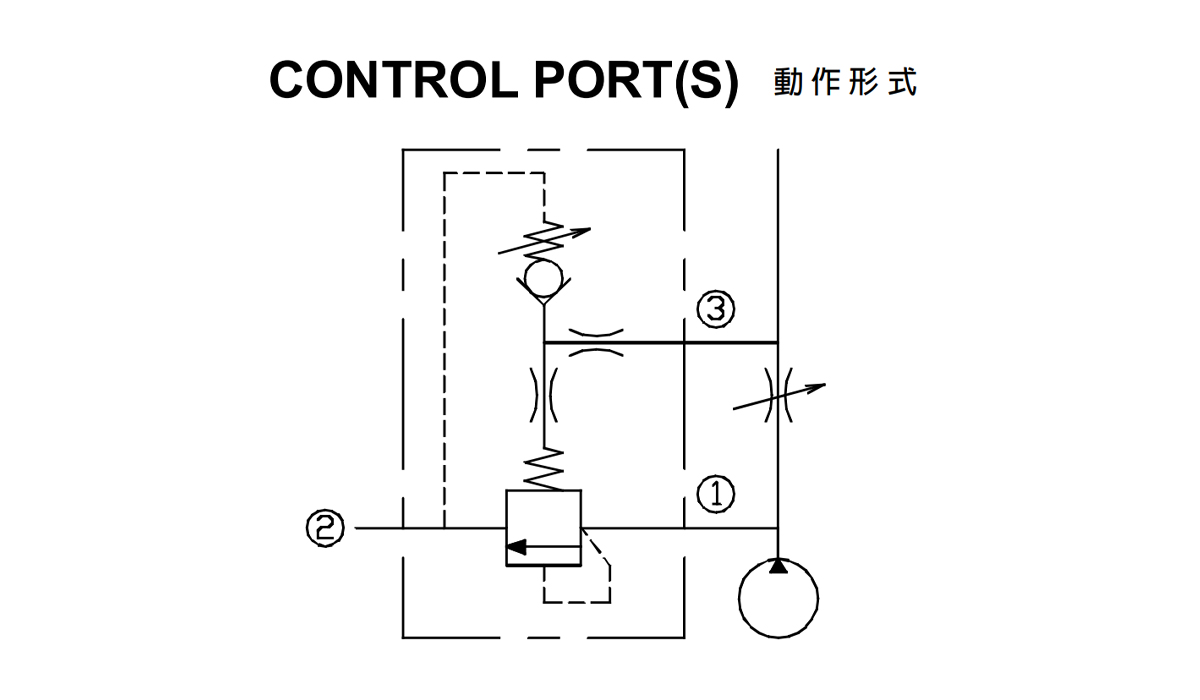

- Three-port normally closed modulating elements with relief provide two functions when combined with an external orifice.
- The mainstage is a bypass compensator that controls a priority flow into the circuit, determined by the external orifice.
- Input flow in excess of the priority flow is bypassed to tank (port 2).
- If the inlet (port 1) pressure rises to the valve setting, the valve operates as a normal relief valve.
- Specifications
- How to Order
| Model Number | Maximum Pressure | Maximum Flow | Weight |
|---|---|---|---|
| VRVB-02 | 350 (5076 psi) | 40 (10.57 gpm) | 0.18 (0.40 lbs) |
| Fluid Type | ISO VG 32, 46, 68 | ||
| Viscosity | 10~400 (59~1854 SSU) | ||
| Operating Temperature | -15~70 (-5~158oF) | ||
| Contamination Level | ISO4406. 21/19/16 NAS1638,10 | ||
