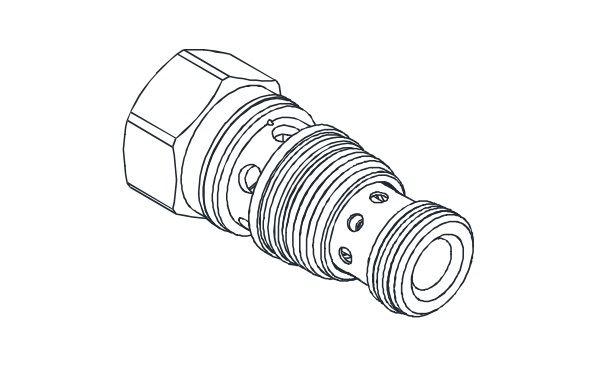

Pressure Control Valves VRBP-03

Picture Index
Model Index
Features

  • The-T8A control option allows a pilot control valve to be incorporated directly into the end of the modulating element via the T-8A cavity.
  • These pilot control cartridges are sold separately and include electro-proportional, solenoid, air pilot, and hydraulic pilot operation.

Inquiry
PDF
  • Specifications

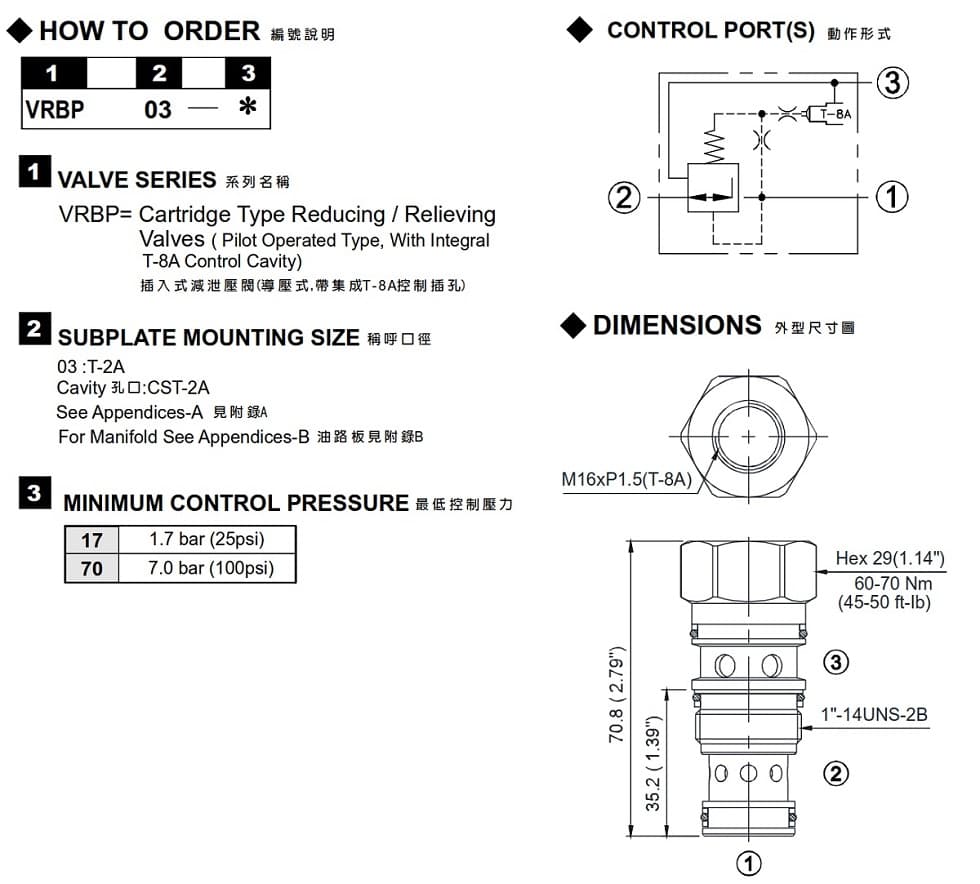

  • How to Order
Model Number Operating Pressure (bar) Flow (lpm) Weight (kg)
VRBP-03 350 (5076 psi) 80 (21.13 gpm) 0.30 (0.66 lbs)
Fluid Type ISO VG 32, 46, 68
Viscosity (cSt) 10~400 (59~1854 SSU)
Operating Temperature (°C) -30~100 (-22~212 °F)
Contamination Level ISO4406. 20/18/15 NAS1638. 9
